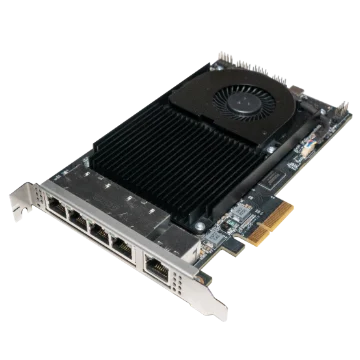

Hikrobot MV-SVA2509-16G50-NN 1 communication GigE port, 4 camera GigE ports, 16 GB RAM, Full deep learning functionality supported, Fan cooling
Model MV-SVA2509-16G50-NN
Hikrobot MV-SVA2509-16G50-NN 1 communication GigE port, 4 camera GigE ports, 16 GB RAM, Full deep learning functionality supported, Fan cooling. 8-core processor for powerful computing performance Embedded VM algorithm platform: feature-rich and stable
Datasheet (PDF, Chinese) - MV-SVA2509-16G50-NNUser manual (PDF, Chinese) - MV-SVA2509-16G50-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-SVA2509-16G50-NN
Features
- 8-core processor for powerful computing performance
- Embedded VM algorithm platform: feature-rich and stable
- Multiple integrated Ethernet ports to connect GigE industrial cameras, PLCs and more
- 8 built-in configurable inputs/outputs for vision inspection needs
- Secondary development via the VM algorithm platform for greater flexibility
- Low power consumption and low load to reduce costs and boost efficiency
Specifications
| Model | MV-SVA2509-16G50-NN |
|---|---|
| Brand | Hikrobot |
| Function module | VisionMaster algorithm platform (with deep learning module) |
| Communication protocol | TCP, UDP, ModBus, Serial, Profinet, EtherNet/IP, Fins, MC, FTP, etc. |
| CPU | 8-core ARM |
| Memory | 16 GB |
| eMMC | 64 GB |
| Interconnect | PCI-E gen3 × 2 |
| Delivery bandwidth | Up to 10 Gbps per lane |
| Digital I/O | 8 configurable I/O, Single-ended/differential compatible |
| Network interface | 4 × Gigabit Ethernet ports (for camera connection, non-PoE); 1 × Gigabit Ethernet communication port (for PLCs and other communication devices) |
| Serial Port | 1× RS-232 |
| Power consumption | 14 W |
| Power supply | 12 VDC |
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Weight | 260 g |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.46 kg |
