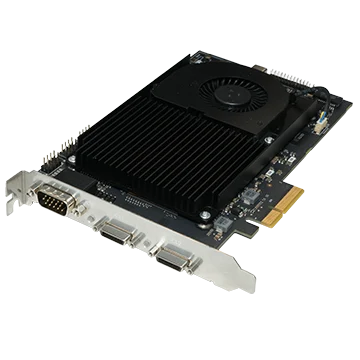

Hikrobot MV-SVA2506-08C20-NN 2CML interface, 8 GB RAM, Traditional algorithms supported, Fan cooling
Model MV-SVA2506-08C20-NN
Hikrobot MV-SVA2506-08C20-NN 2CML interface, 8 GB RAM, Traditional algorithms supported, Fan cooling. 8-core processor for powerful computing performance Embedded VM algorithm platform: feature-rich and stable
Datasheet (PDF, Chinese) - MV-SVA2506-08C20-NNUser manual (PDF, Chinese) - MV-SVA2506-08C20-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-SVA2506-08C20-NN
Features
- 8-core processor for powerful computing performance
- Embedded VM algorithm platform: feature-rich and stable
- Multiple integrated Camera Link ports to connect Camera Link industrial cameras
- 8 built-in configurable inputs/outputs for vision inspection needs
- Secondary development via the VM algorithm platform for greater flexibility
- Low power consumption and low load to reduce costs and boost efficiency
Specifications
| Model | MV-SVA2506-08C20-NN |
|---|---|
| Brand | Hikrobot |
| Function module | VisionMaster algorithm platform (without deep learning module) |
| Communication protocol | TCP, UDP, ModBus, Serial, Profinet, EtherNet/IP, Fins, MC, FTP, etc. |
| CPU | 8-core ARM |
| Memory | 8 GB |
| eMMC | 64 GB |
| Pixel clock | 20 ~ 85 MHz |
| Interconnect | PCI-E gen3 × 2 |
| Delivery bandwidth | 1720 MB/s (max. transmission bandwidth); 1600 MB/s (sustained transmission bandwidth) |
| Bus indicator | 1 |
| Standard | Camera Link 2.1 |
| Interface | 2 × SDR |
| Power output | PoCL, Up to 4 W @ 12 VDC per channel |
| Camera type supported | Camera Link industrial camera |
| Camera quantity supported | 2 at most |
| Camera connection speed | 6.8 Gbps |
| Stream | 2 |
| Stream indicator | 2 |
| Network interface | 1× Gigabit Ethernet ports |
| Serial Port | 1 × RS-232 port |
| Digital I/O | 11 configurable I/O, Single-ended/differential compatible |
| Power supply | 12 VDC |
| Power consumption | 15.6 W (excluding PoCL) |
| Dimension | Main card: 181 mm × 126.3 mm × 21.6 mm; Expansion board: 46 mm × 126.3 mm × 21.6 mm |
| Weight | Main card: 250 g; Expansion board: approx. 50 g |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
| Transmission mode | Base, Medium, Full |
| Shipping weight (estimated) | 0.45 kg |
