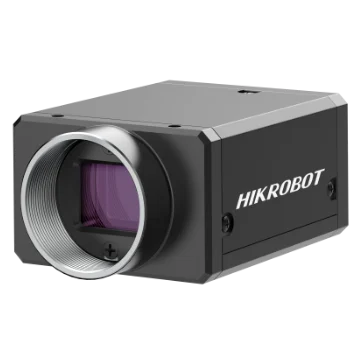

Hikrobot MV-Semi250H 25 MP 1.1" CMOS Gigabit Ethernet industrial area scan camera
Model MV-Semi250H
Hikrobot MV-Semi250H 25 MP 1.1" CMOS Gigabit Ethernet industrial area scan camera. 25 MP resolution, 2.5 µm pixel size Compact size, compatible with C-mount lenses
Features
- 25 MP resolution, 2.5 µm pixel size
- Compact size, compatible with C-mount lenses
- Flexible mounting with holes on the top and bottom panels
- LSC lens shading correction
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless connection to third-party software
Specifications
| Model | MV-Semi250H |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1” |
| Resolution | 5120 × 5120 |
| Max. frame rate | 4.5 fps @5120 × 5120 Mono 8 |
| Dynamic range | 63 dB |
| SNR | 36 dB |
| Gain | 2.0 ×, 2.5 ×, 3.0 ×, 3.5 ×, 4.0 ×, 4.5 ×, 5.0 × |
| Exposure time | 12 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 3.1 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm x 44 mm × 59 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
