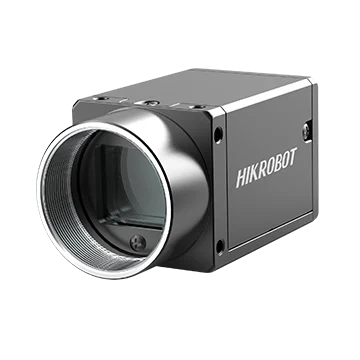

Hikrobot HIK-C120-CG 12 MP 1.1" CMOS Gigabit Ethernet industrial area scan camera
Model HIK-C120-CG
Hikrobot HIK-C120-CG 12 MP 1.1" CMOS Gigabit Ethernet industrial area scan camera. Four-side mounting, compact size, C-mount lens compatible Automatic or manual gain and exposure time; manual LUT and gamma correction
Features
- Four-side mounting, compact size, C-mount lens compatible
- Automatic or manual gain and exposure time; manual LUT and gamma correction
- Advanced features including LSC lens shading correction, Sequencer cycling and passive transmission
- Color cameras support interpolation, white balance, CCM, SuperPalette, SuperBayer and other color algorithms
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software platforms
Specifications
| Model | HIK-C120-CG |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1” |
| Resolution | 4096 × 3000 |
| Max. frame rate | 9.5 fps @4096 × 3000 Bayer GB 8 |
| Dynamic range | 67.2 dB |
| SNR | 44.1 dB |
| Gain | 0 dB ~ 12 dB |
| Exposure time | 45 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports TriggerWidth |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bidirectional configurable non-isolated I/O (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 2.2 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
