Hikrobot MV-SCi3XC-H-WX_S 0.3 MP color vision sensor
Model MV-SCi3XC-H-WX_S

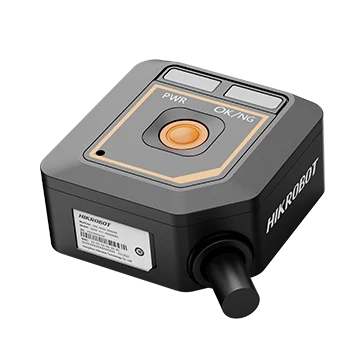

Hikrobot MV-SCi3XC-H-WX_S 0.3 MP color vision sensor. Ultra-compact: fits all kinds of machines and tight workstations Embedded hardware platform for high-speed image processing
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- Embedded hardware platform for high-speed image processing
- High-precision positioning and measurement algorithms for counting, presence checks and measurement
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- Indicator lights show operating status for easy on-site setup
- Supports Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, serial and other communication modes
Specifications
| Model | MV-SCi3XC-H-WX_S |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: point-line measurement, Contrast measurement, Grayscale area, Pitch measurement, Width measurement, Mean brightness, Line-line angle, Diameter measurement, Line angle, Color measurement, Color area; Presence: blob presence, Edge presence, Contour presence, Circle presence, Line presence; Counting: blob counting, Edge count, Contour count, Color counting; Recognition: registered classification, Color comparison; Logic: variable calculation, Logic judgment, Condition judgment, Combined judgment; Positioning: position correction |
| Solution capacity | Solution import/export supported, Up to 8 solutions stored, 40 modules |
| Communication protocol | Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.74 μm × 3.74 μm |
| Sensor size | 1/6" |
| Resolution | 640 × 480 |
| Max. frame rate | 15 fps |
| Dynamic range | 60 dB |
| SNR | 40 dB |
| Gain | 1 dB ~ 23 dB |
| Exposure time | 60 μs ~ 7000 μs |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet(100Mbit/s) |
| Digital I/O | Green terminal block provides power, Digital I/O, Serial port functions: includes 1 input (LINE 0), 1 output (LINE 1), 1 RS-232; Device can be triggered via the top button |
| Power supply | 12 ~ 24 VDC |
| Power consumption | 3 W@12 VDC |
| Max. power consumption | 3 W@12 VDC |
| Lens mount | M5.5-mount |
| Focal length | 3.1 mm |
| Working distance | 240 mm |
| Lens cap | Transparent lens cap |
| Light source | White LED |
| Aiming system | Orange LED |
| Indicator | Power indicator (PWR), result indicator (OK/NG) |
| Dimension | 38 mm × 38 mm × 19 mm |
| Weight | Approx. 40 g (0.09 lb.) without cable |
| Ingress protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.16 kg |
