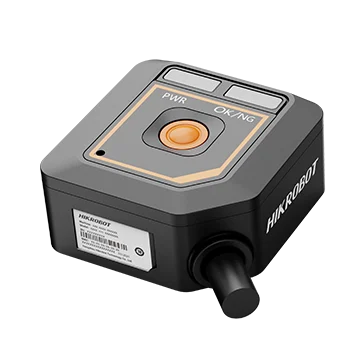

Hikrobot MV-SCA002C-03S-WBN-NR SCA vision sensor, 0.3 MP, Color, 3 mm lens, Focus distance 120 mm
Model MV-SCA002C-03S-WBN-NR
Hikrobot MV-SCA002C-03S-WBN-NR SCA vision sensor, 0.3 MP, Color, 3 mm lens, Focus distance 120 mm. Ultra-compact: fits all kinds of machines and tight workstations Embedded hardware platform for high-speed image processing
Datasheet (PDF, Chinese) - MV-SCA002C-03S-WBN-NRUser manual (PDF, Chinese) - MV-SCA002C-03S-WBN-NRCAD: 3D STEP + 2D DXF (ZIP) - MV-SCA002C-03S-WBN-NR
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- Embedded hardware platform for high-speed image processing
- High-precision positioning and measurement algorithms for counting, presence checks and measurement
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- Indicator lights show operating status for easy on-site setup
- Supports Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, serial and other communication modes
Specifications
| Model | MV-SCA002C-03S-WBN-NR |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, diameter measurement, line angle, color measurement, and color size; Existence: Anomaly judge, spot existence, edge existence, contour existence, circle existence, and line existence; Count: Spot count, edge count, contour count, and color count; Recognition: Category recognition, classification registration, and color contrast; Logic: Calculator, logic judge, condition judge, combination judge, and format output; Location: Fixture |
| Solution capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. |
| Communication protocol | Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.74 μm × 3.74 μm |
| Sensor size | 1/6" |
| Resolution | 640 × 480 |
| Max. frame rate | 15 fps |
| Gain | 1 dB ~ 23 dB |
| Exposure time | 60 μs ~ 7000 μs |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet(100Mbit/s) |
| Digital I/O | Green terminal provides power, digital I/O, and serial port, including input signal × 1 (Line 0), output signal × 1 (Line 1), and RS-232 × 1.; Supports triggering device via pressing top trigger button. |
| Power supply | 12 ~ 24 VDC |
| Power consumption | Avg. 1.5 W @ 12 VDC; Max. 3 W @ 12 VDC |
| Lens mount | M5.8-mount |
| Focal length | 3.1 mm |
| Working distance | 120 mm |
| Lens cap | Transparent lens cap |
| Light source | White LED |
| Aiming system | 1 LED |
| Indicator | Power indicator (PWR), result indicator (OK/NG) |
| Dimension | 38 mm × 38 mm × 19 mm |
| Weight | Approx. 40 g (0.09 lb.) without cable |
| Ingress protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.16 kg |
