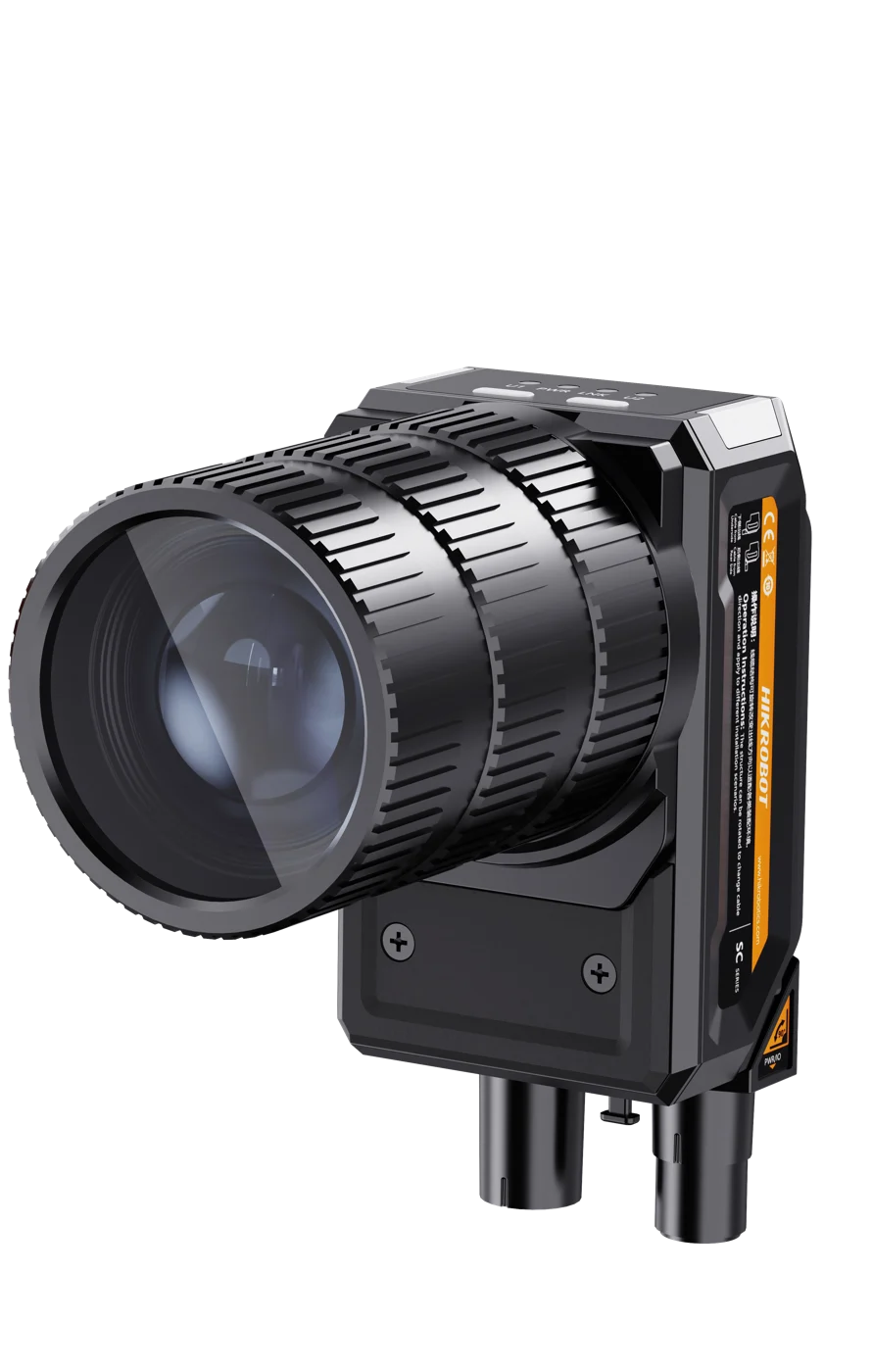

Hikrobot MV-SC5520XC-00C-MAX 12 MP color smart camera
Model MV-SC5520XC-00C-MAX
Hikrobot MV-SC5520XC-00C-MAX 12 MP color smart camera. Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more Integrated VM algorithm platform software with free use of 140+ algorithm functions
Features
- Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more
- Integrated VM algorithm platform software with free use of 140+ algorithm functions
- Rich I/O interface for multiple input and output signals
- Supports multiple industrial communication modes for easy integration
- Comprehensive status indicators for easy setup and maintenance
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-SC5520XC-00C-MAX |
|---|---|
| Brand | Hikrobot |
| Function module | Vision Master Platform (include deep learning module) |
| Communication protocol | TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 2944 |
| Max. frame rate | 30 fps |
| Gain | 0 dB ~ 37 dB |
| Exposure time | 45 μs ~ 1 sec |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Memory | 8 GB |
| Storage | 64 GB |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | Typical power: 10 W@24 VDC; Max. power: 14.4 W@24 VDC |
| Lens mount | C-Mount |
| Lens cap | Transparent lens cap |
| Light source | Not included |
| Indicator | Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2) |
| Dimension | Straight: 112.3 mm × 54 mm × 110 mm; Right-angle: 88.7 mm × 54 mm × 110 mm |
| Weight | Approx. 370 g (0.8 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.62 kg |
