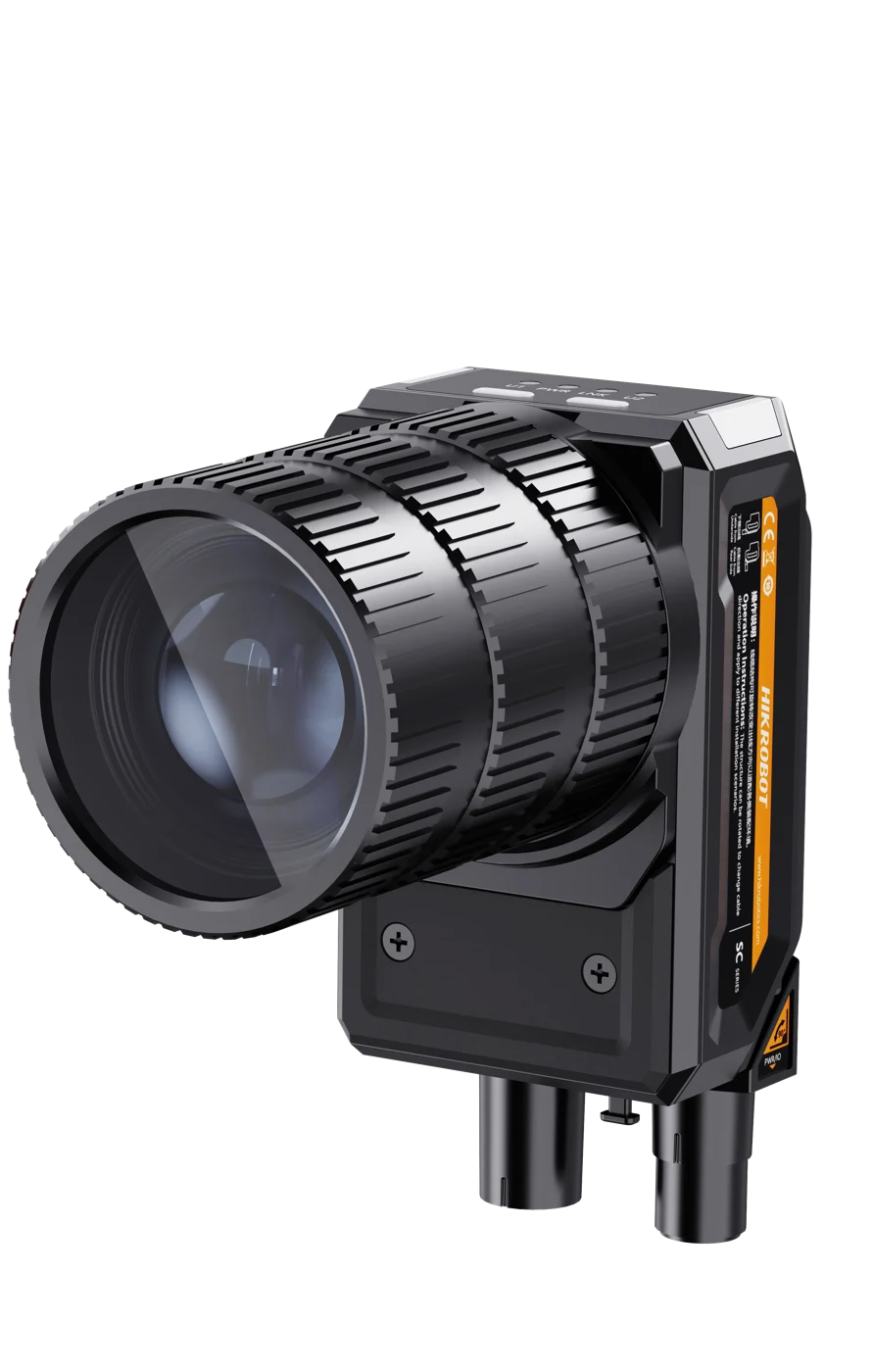

Hikrobot MV-SC5120XM-00C-NNN SC5000X series Smart Camera, 12MP, Mono, C-Mount
Model MV-SC5120XM-00C-NNN
Hikrobot MV-SC5120XM-00C-NNN SC5000X series Smart Camera, 12MP, Mono, C-Mount. Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc. Integrates VM functions, and supports more than 140 algorithms.
Datasheet (PDF) - MV-SC5120XM-00C-NNNQuick start guide (PDF) - MV-SC5120XM-00C-NNNCAD: 3D STEP + 2D DXF (ZIP) - MV-SC5120XM-00C-NNN
Features
- Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
- Integrates VM functions, and supports more than 140 algorithms.
- Adopts multiple interfaces and supports multiple-channel I/O, light source, display, etc.
- Adopts high-performance CPU with faster calculation performance and high efficiency.
- Supports multiple communication protocols.
- Supports indicators displaying device status for easy debugging and maintenance.
- Supports ingress protection IP67.
Specifications
| Model | MV-SC5120XM-00C-NNN |
|---|---|
| Brand | Hikrobot |
| Function module | Vision Master Platform (include deep learning module) |
| Communication protocol | TCP, UDP, Modbus, Serial Port, Profinet, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 2944 |
| Max. frame rate | 30 fps |
| Gain | 0 dB to 37 dB |
| Exposure time | 35 μs to 1 sec |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| Memory | 8 GB |
| Storage | 64 GB |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | Avg. 10 W @ 24 VDC; Max. 14.4 W @ 24 VDC |
| Lens mount | C-mount |
| Lens cap | Transparent lens cap |
| Light source | Not included |
| Indicator | Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2) |
| Dimension | Straight angle: 112.3 mm × 54 mm × 110 mm (4.4" × 2.1" × 4.3"); Right angle: 88.7 mm × 54 mm × 110 mm (3.5" × 2.1" × 4.3") |
| Weight | Approx. 370 g (0.8 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)* |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)* |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.62 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the SC5000 Series Smart Camera series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-SC5050XC-00C-NNN | 5 MP, 1/1.45", Color | Price on request | 2 in stock | View |
| MV-SC5060XC-08M-WBN | 6.1 MP, 1/2.4", 8 mm lens, Color | Price on request | 5 in stock | View |
| MV-SC5060XC-12M-WBN | 6.1 MP, 1/2.4", 12 mm lens, Color | Price on request | 4 in stock | View |
| MV-SC5060XC-16M-WBN | 6.1 MP, 1/2.4", 16 mm lens, Color | Price on request | 3 in stock | View |
| MV-SC5060XC-00C-NNN | 6.1 MP, 1/2.4", Color | Price on request | 3 in stock | View |
| MV-SC5060XM-08M-WBN | 6.1 MP, 1/2.4", 8 mm lens, Mono | Price on request | 3 in stock | View |
| MV-SC5060XM-12M-WBN | 6.1 MP, 1/2.4", 12 mm lens, Mono | Price on request | 2 in stock | View |
| MV-SC5060XM-16M-WBN | 6.1 MP, 1/2.4", 16 mm lens, Mono | Price on request | 4 in stock | View |
| MV-SC5060XM-00C-NNN | 6.1 MP, 1/2.4", Mono | Price on request | 3 in stock | View |
| MV-SC5100XC-08M-WBN | 11.5 MP, 1/1.8", 8 mm lens, Color | Price on request | 2 in stock | View |
| MV-SC5100XC-12M-WBN | 11.5 MP, 1/1.8", 12 mm lens, Color | Price on request | 3 in stock | View |
| MV-SC5100XC-16M-WBN | 11.5 MP, 1/1.8", 16 mm lens, Color | Price on request | 5 in stock | View |
| MV-SC5100XC-08L-WBN | 11.5 MP, 1/1.8", 8 mm lens, Color | Price on request | 4 in stock | View |
| MV-SC5100XC-12L-WBN | 11.5 MP, 1/1.8", 12 mm lens, Color | Price on request | 5 in stock | View |
| MV-SC5100XC-16L-WBN | 11.5 MP, 1/1.8", 16 mm lens, Color | Price on request | 4 in stock | View |
| MV-SC5100XC-00C-NNN | 11.5 MP, 1/1.8", Color | Price on request | 3 in stock | View |
| MV-SC5100XM-08M-WBN | 11.5 MP, 1/1.8", 8 mm lens, Mono | Price on request | 2 in stock | View |
| MV-SC5100XM-12M-WBN | 11.5 MP, 1/1.8", 12 mm lens, Mono | Price on request | 4 in stock | View |
| MV-SC5100XM-16M-WBN | 11.5 MP, 1/1.8", 16 mm lens, Mono | Price on request | 2 in stock | View |
| MV-SC5100XM-08L-WBN | 11.5 MP, 1/1.8", 8 mm lens, Mono | Price on request | 4 in stock | View |
| MV-SC5100XM-12L-WBN | 11.5 MP, 1/1.8", 12 mm lens, Mono | Price on request | 4 in stock | View |
| MV-SC5100XM-16L-WBN | 11.5 MP, 1/1.8", 16 mm lens, Mono | Price on request | 5 in stock | View |
| MV-SC5100XM-00C-NNN | 11.5 MP, 1/1.8", Mono | Price on request | 2 in stock | View |
| MV-SC5120XC-00C-NNN | 12.1 MP, 1.1", Color | Price on request | 2 in stock | View |
