Photoelectric sensors

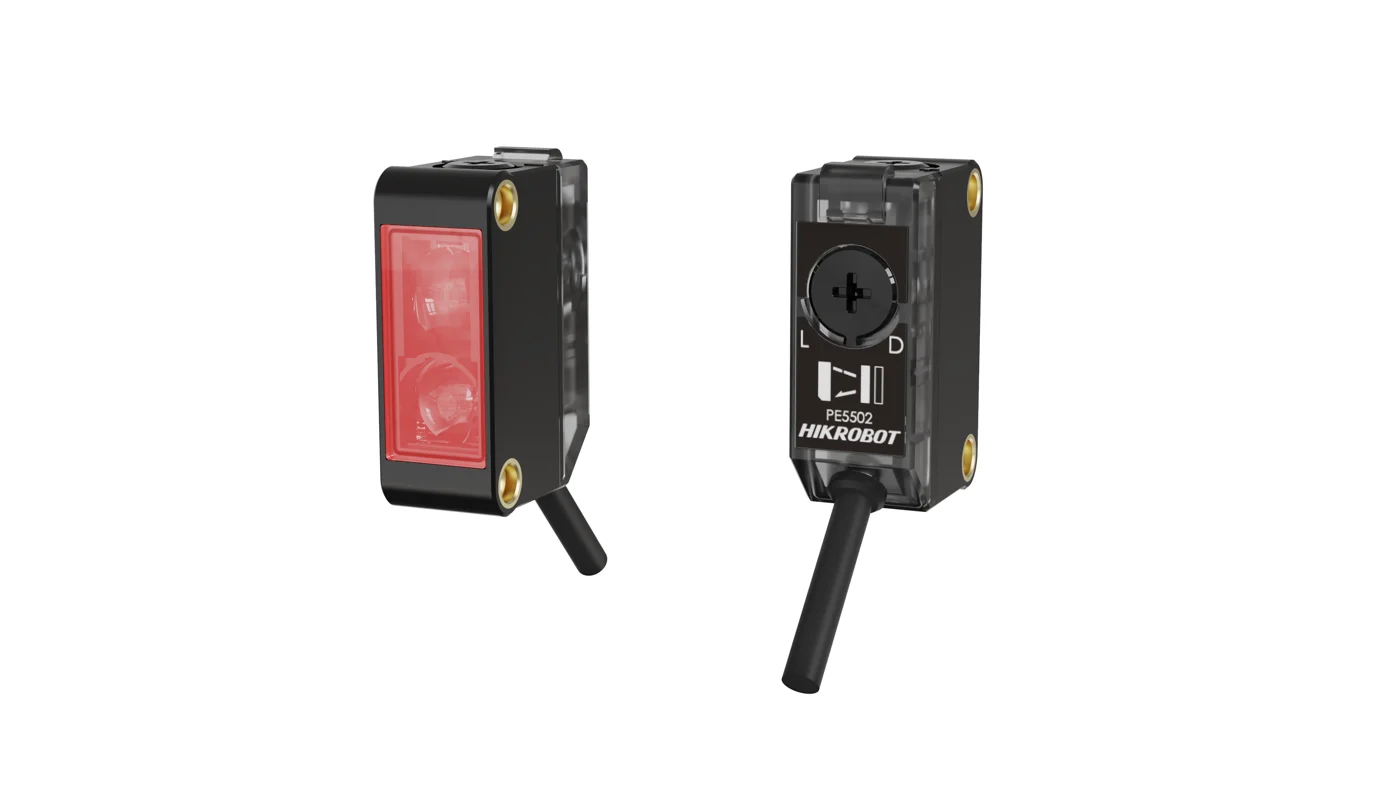

Hikrobot MV-PE5502 Diffuse-reflective sensor(10-350mm, Red LED, settable distance, NPN)
Model MV-PE5502
Hikrobot MV-PE5502 Diffuse-reflective sensor(10-350mm, Red LED, settable distance, NPN). Provides a red spot for ease of alignment. Adapts to complex light environment with anti-interference capability.
Datasheet (PDF) - MV-PE5502Quick start guide (PDF) - MV-PE5502CAD: 3D STEP + 2D DXF (ZIP) - MV-PE5502
Features
- Provides a red spot for ease of alignment.
- Adapts to complex light environment with anti-interference capability.
- Supports stable detection of low reflectivity objects.
Specifications
| Model | MV-PE5502 |
|---|---|
| Brand | Hikrobot |
| Detecting distance | 10 mm to 350 mm |
| Sensing target | Standard reflector (100 mm × 100 mm) with reflectivity of 5% |
| Output | NPN (supports light-on/dark-on switch) |
| Light source | Red LED 660 nm |
| Response time | ≤ 500 μs |
| Hysteresis | < 10% of set distance |
| Distance setting adjustment | Multi-turn trimmer |
| Supply voltage | 12 VDC to 24 VDC ± 10% |
| Residual voltage | ≤ 2 VDC |
| Operating current | ≤ 20 mA |
| Max. sink/source current | ≤ 100 mA |
| Circuit protection | Reverse polarity protection, overcurrent protection, and overvoltage protection |
| Insulation resistance | 20 MΩ or more (between the terminal block for power supply and the housing) |
| Withstand voltage | 1000 VAC, 1 min (between the terminal block for power supply and the housing) |
| Dimension | 20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2") |
| Weight | Approx. 45 g (0.1 lb.) (including cable) |
| Temperature | Working temperature: –25 °C to 55 °C (–13 °F to 131 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 35% RH to 85% RH |
| Ambient illumination | Sunlight: < 10000 lux; Incandescent lamp: < 3000 lux |
| Ingress protection | IP67 |
| Material | Housing: polycarbonate; Lens: acrylic |
| Indicator | Operation indicator: orange; Stability indicator: green |
| Connecting method | Cable lead-out (standard length: 2 m, 78.7") |
| Vibration resistance | 10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions |
| Shock resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.16 kg |
