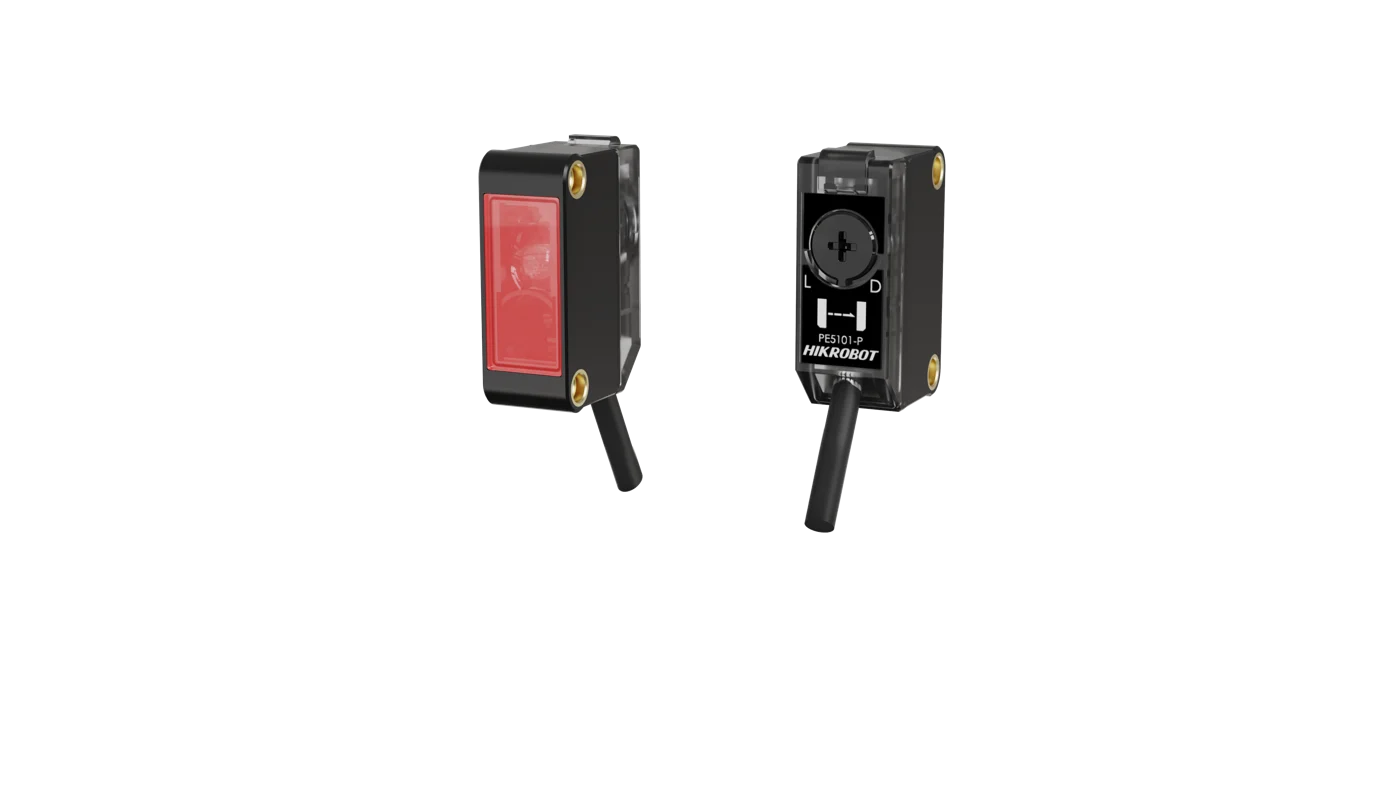

Hikrobot MV-PE5101 Through-beam sensor(15m, Red LED, NPN)

Photoelectric sensors

Hikrobot MV-PE5101 Through-beam sensor(15m, Red LED, NPN)

Model MV-PE5101

Hikrobot MV-PE5101 Through-beam sensor(15m, Red LED, NPN). Provides a large red spot for ease of alignment. Remains unaffected if exposed to direct sunlight with strong anti-interference capability.

Price on request
0.16 kg shipping weight · Ships in 2-3 weeks
Request a quote
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - MV-PE5101Quick start guide (PDF) - MV-PE5101CAD: 3D STEP + 2D DXF (ZIP) - MV-PE5101

Features

  • Provides a large red spot for ease of alignment.
  • Remains unaffected if exposed to direct sunlight with strong anti-interference capability.
  • Requires no adjustment with ease of use.

Specifications

ModelMV-PE5101
BrandHikrobot
Detecting distance15 m
Sensing targetOpaque object above Φ15 mm
OutputNPN-NO/NC (supports light-on/dark-on switch)
Light sourceRed LED 660 nm
Response time≤ 500 μs
Repeatability (perpendicular to sensing axis)≤ 0.5 mm
Supply voltage12 VDC to 24 VDC ± 10%, including Ripple (P-P) 10% or less
Residual voltage≤ 2 VDC
Operating current≤ 20 mA
Max. sink/source current≤ 100 mA
Circuit protectionReverse polarity protection, overcurrent protection, and overvoltage protection
Insulation resistance20 MΩ or more (between the terminal block for power supply and the housing)
Withstand voltage1000 VAC, 1 min (between the terminal block for power supply and the housing)
Dimension20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2")
WeightTransmitter: approx. 45 g (0.1 lb.) (including cable); Receiver: approx. 45 g (0.1 lb.) (including cable)
TemperatureWorking temperature: –25 °C to 55 °C (–13 °F to 131 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity35% RH to 85% RH
Ambient illuminationSunlight: < 10000 lux; Incandescent lamp: < 3000 lux
Ingress protectionIP67
MaterialHousing: polycarbonate; Lens: acrylic
IndicatorOperation indicator: orange (receiver); Stability indicator: green (receiver); Power indicator: orange (transmitter)
Connecting methodCable lead-out (standard length: 2 m, 78.7")
Vibration resistance10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions
Shock resistance500 m/s2, 3 times in each of the X, Y, and Z directions
CertificationCE, RoHS
Shipping weight (estimated)0.16 kg
