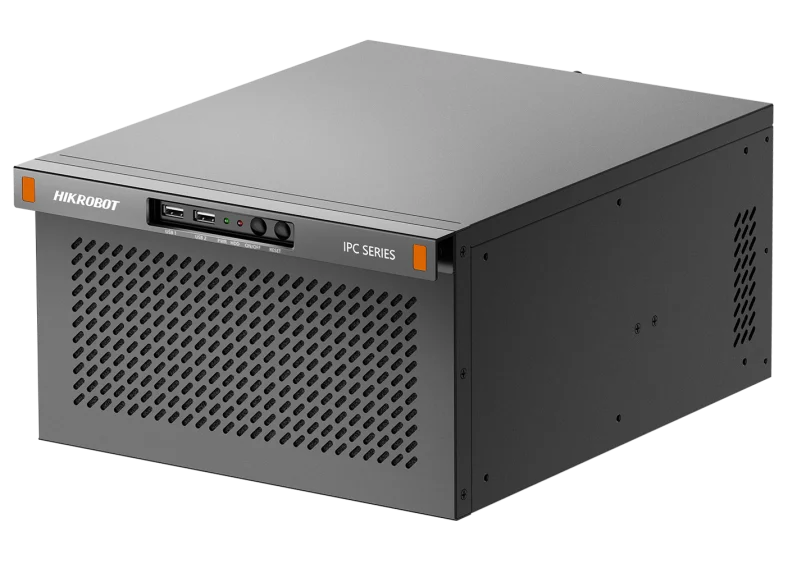

Hikrobot MV-IPC-H3C7H-32G-256G2T-242 3U wall-mount industrial PC, mATX-H610, i7-12700, 2*16G, 256G+2T, 400W
Model MV-IPC-H3C7H-32G-256G2T-242
Hikrobot MV-IPC-H3C7H-32G-256G2T-242 3U wall-mount industrial PC, mATX-H610, i7-12700, 2*16G, 256G+2T, 400W. Supports Gen 12/13/14 Intel® Core™ i3/i5/i7/i9, Pentium® and Celeron® CPUs 2 DDR4 U-DIMM memory slots, expandable to 64 GB
Datasheet (PDF, Chinese) - MV-IPC-H3C7H-32G-256G2T-242User manual (PDF, Chinese) - MV-IPC-H3C7H-32G-256G2T-242
Features
- Supports Gen 12/13/14 Intel® Core™ i3/i5/i7/i9, Pentium® and Celeron® CPUs
- 2 DDR4 U-DIMM memory slots, expandable to 64 GB
- Expansion slots: 1× PCIe ×16, 2× PCIe ×4, 1× PCI
- 2 Intel Ethernet ports, 4 USB3.0 ports, 4 USB2.0 ports
- VGA + HDMI + DP display outputs with independent triple-display support
Specifications
| Model | MV-IPC-H3C7H-32G-256G2T-242 |
|---|---|
| Brand | Hikrobot |
| CPU | Supports LGA1700 Intel® CoreTM Gen 12/13/14, i3/i5/i7/i9 and Pentium®, Celeron® CPU, TDP:65W |
| Chip | Intel® H610 chipset, Micro-ATX motherboard |
| Memory | 2 × DDR4 U-DIMM memory slots, 32 GB per module, Up to 64 GB |
| Storage | 4 × 7-pin SATA3.0, 1 × M.2 NVMe 2242/2280 slot |
| Operating system | Windows 10/11, Linux |
| Network interface | 2× Intel Ethernet ports (I226 + I219) |
| USB Interface | Onboard 4 × USB 3.0 ports1, 4× USB 2.0 ports; Built-in 2× USB 2.0 (pin header) |
| Serial Port | 1 × RS-232/422/485 interface; 1 × internal RS-232/422/485 headers, 4 × RS-232 headers |
| Extended interface | 1× PCIe x16 (PCIe 5.0), 2 × PCIe x4 (PCIe 3.0, x2 signal), 1 × PCI expansion slots (32-bit) |
| Display interface | Independent triple display supported; 1 × VGA, up to 1920×1080@60Hz; 1× HDMI, up to 3840×2160 @ 60Hz; 1×DP, up to 3840×2160@60Hz |
| Audio interface | Mic-In, Line-In, Line-out |
| GPIO | 8-bit GPIO |
| Power supply | 100 ~ 240V AC |
| Max. power consumption | 400W |
| Installation method | Wall-mount |
| Dimension | 351mm × 260mm × 155mm (L*W*H) |
| Weight | Net weight approx. 8.0 kg |
| Temperature | Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 11.30 kg |
