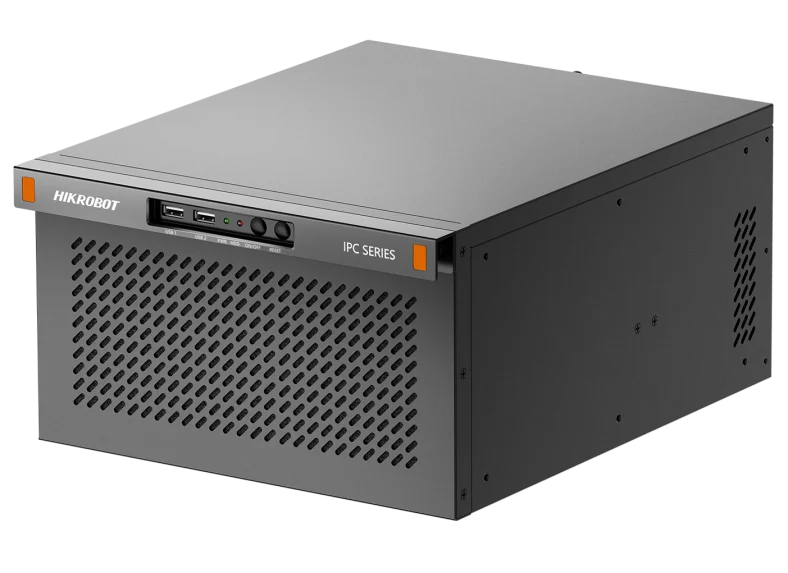

Hikrobot MV-IPC-H397H-32G-256G2T-242 3U wall-mount industrial PC, mATX-H110, i7-9700, 2*16G, 256G+2T, 400W
Model MV-IPC-H397H-32G-256G2T-242
Hikrobot MV-IPC-H397H-32G-256G2T-242 3U wall-mount industrial PC, mATX-H110, i7-9700, 2*16G, 256G+2T, 400W. Supports Intel® Gen 6/7/8/9 Core™ i3/i5/i7, Pentium® and Celeron® CPUs 2 DDR4 U-DIMM memory slots, expandable to 32 GB
Datasheet (PDF, Chinese) - MV-IPC-H397H-32G-256G2T-242User manual (PDF, Chinese) - MV-IPC-H397H-32G-256G2T-242
Features
- Supports Intel® Gen 6/7/8/9 Core™ i3/i5/i7, Pentium® and Celeron® CPUs
- 2 DDR4 U-DIMM memory slots, expandable to 32 GB
- Expansion slots: 1 × PCIe x16 (x16 signal), 1 × PCIe x4 (x4 signal), 2 × PCI (32-bit)
- 2 Intel Ethernet ports, 4 USB3.0 ports, 2 USB2.0 ports
- DVI + VGA + HDMI display outputs with independent dual displays
Specifications
| Model | MV-IPC-H397H-32G-256G2T-242 |
|---|---|
| Brand | Hikrobot |
| CPU | Supports LGA1151 Intel® CoreTM Gen 6/7/8/9, i3/i5/i7 and Pentium®, Celeron® CPU; CPU TDP up to 95 W |
| Chip | Intel® H110 chipset, Micro-ATX motherboard |
| Memory | 2× DDR4 U-DIMM memory slots supported, 16 GB per module, Up to 32 GB |
| Storage | 3× 7-pin SATA 3.0 supported, 1 × M.2 2280 SATA interface |
| Operating system | Windows 7/10, Linux |
| Network interface | 2 Intel Ethernet ports (I219, I225) |
| USB Interface | 4 × USB 3.0 ports1, 2× USB 2.0 ports; Built-in 2× USB 2.0 (pin header), 2× onboard USB 2.0 ports for dongle |
| Serial Port | Onboard 1× RS-232/422/485 port; 5 × internal RS-232 headers |
| Extended interface | Includes 1 × PCIe x16 (PCIe 3.0), 1× PCIe x4 (PCIe 2.0), 2 × PCI expansion slots |
| Display interface | Independent dual display supported; 1 × VGA, up to 1280×1024@60Hz; 1 × DVI-D, up to 1920×1080@60Hz; 1 × HDMI, up to 3840×2160@60Hz |
| Audio interface | Mic-In, Line-In, Line-out |
| GPIO | 8-bit GPIO |
| Power supply | 100 ~ 240V AC |
| Max. power consumption | 400W |
| Installation method | Wall-mount |
| Dimension | 351mm × 260 mm × 155 mm (L*W*H) |
| Weight | Net weight approx. 8.0 kg |
| Temperature | Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 11.30 kg |
