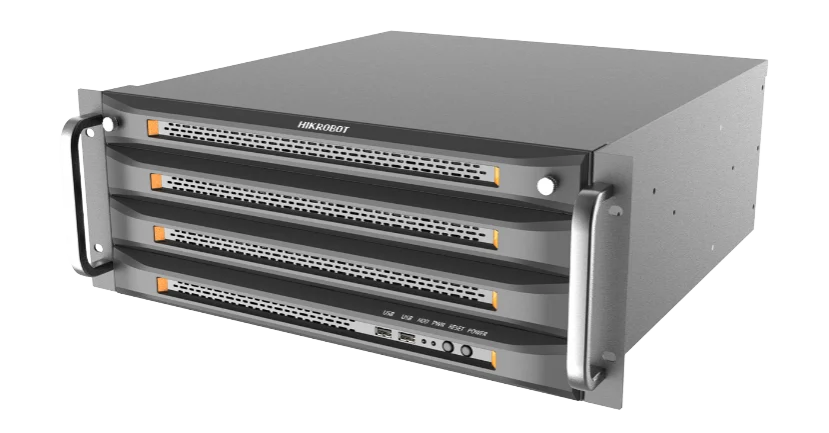

Hikrobot MV-IPC-F4A7W-32G-256G2T-2A1 4U rack-mount industrial PC, W580, i7-10700, 2*16G, 256G+2T, 500W
Model MV-IPC-F4A7W-32G-256G2T-2A1
Hikrobot MV-IPC-F4A7W-32G-256G2T-2A1 4U rack-mount industrial PC, W580, i7-10700, 2*16G, 256G+2T, 500W. Supports Intel® Gen 10/11 Xeon W / Core™ i3/i5/i7/i9/G-series CPUs 4 DDR4 non-ECC memory slots, expandable to 128 GB, up to 3200 MHz per module
Datasheet (PDF, Chinese) - MV-IPC-F4A7W-32G-256G2T-2A1User manual (PDF, Chinese) - MV-IPC-F4A7W-32G-256G2T-2A1CAD: 3D STEP + 2D DXF (ZIP) - MV-IPC-F4A7W-32G-256G2T-2A1
Features
- Supports Intel® Gen 10/11 Xeon W / Core™ i3/i5/i7/i9/G-series CPUs
- 4 DDR4 non-ECC memory slots, expandable to 128 GB, up to 3200 MHz per module
- Expansion slots: 2 × PCIe x16 (2 × x8 signal when both slots are populated), 4 × PCIe x4 (one at x1 signal), 1 × PCI (32-bit)
- 2 Intel Ethernet ports; 10 USB3.0 ports, 2 USB2.0 (pin header), 2 USB2.0 internal ports
- 2 × DP + HDMI display outputs with independent triple displays
Specifications
| Model | MV-IPC-F4A7W-32G-256G2T-2A1 |
|---|---|
| Brand | Hikrobot |
| CPU | Supports LGA1200 Intel® Gen 10/11 Xeon W/Core™ i3/i5/i7/i9/G series CPUs, TDP:125W |
| Chip | Intel® W580 chipset, ATX motherboard |
| Memory | 4× DDR4 ECC/non-ECC memory slots supported, 32 GB per module, Up to 128 GB |
| Storage | 1 × M.2 SATA/NVMe 2242/2280 slot (NVMe x4 on Gen 11 CPUs only), 4× 7-pin SATA 3.0 (SATA1 has no signal when a SATA SSD is installed in M.2); RAID 0 supported, 1, 5 |
| Operating system | Windows 10/11, Linux |
| Network interface | 2× Intel Ethernet ports (I226 + I219) |
| USB Interface | 10× USB 3.0 ports1; Built-in 2× USB 2.0 (pin header), 2× onboard USB 2.0 ports for dongle |
| Serial Port | Onboard 1× RS-232/422/485 port, ; Built-in 4× RS-232 (pin header), 1× RS-232/422/485 (pin header) |
| Extended interface | 2× PCIe x16 (PCIe 3.0, 1× x16 signal or 2× x8 signals), ; 4× PCIe x4 (PCIe 3.0, one of which is x1 signal), 1× PCI (32-bit) |
| Display interface | Intel HD Graphics; Independent triple display supported (1× HDMI, 2*DP); 1× HDMI, up to 3840×2160 @ 60Hz; 2× DP, up to 3840×2160 @ 60Hz |
| Audio interface | MIC-In, Line-in, Line-out |
| GPIO | 16-bit GPIO |
| Power supply | 100 ~ 240V AC |
| Max. power consumption | 500W |
| Installation method | Rack-mount and desktop |
| Dimension | 452 mm × 430 mm × 177 mm (L*W*H) |
| Weight | Net weight approx. 13.8 kg |
| Temperature | Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 19.42 kg |
