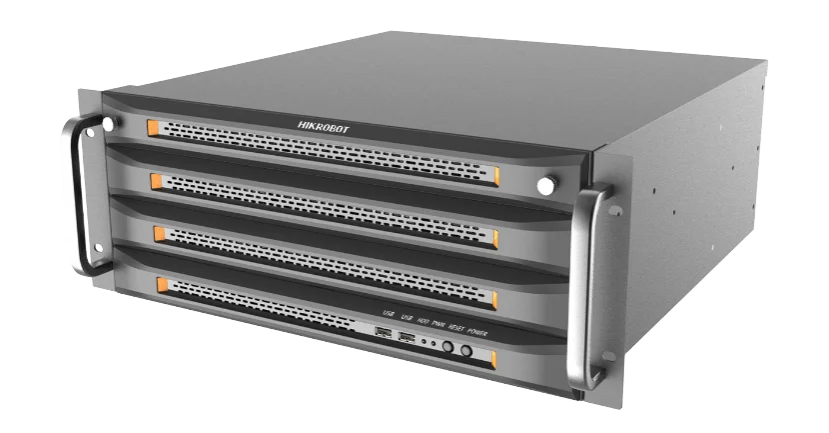

Hikrobot MV-IPC-F467H-8G-256G1T-240 4U rack-mount industrial PC, H110, i7-6700, 8G, 256G+1T, 300W
Model MV-IPC-F467H-8G-256G1T-240
Hikrobot MV-IPC-F467H-8G-256G1T-240 4U rack-mount industrial PC, H110, i7-6700, 8G, 256G+1T, 300W. Supports Intel® Gen 6/7/8/9 Core™ i3/i5/i7/i9, Pentium® and Celeron® CPUs 2 DDR4 U-DIMM memory slots, expandable to 32 GB
Datasheet (PDF, Chinese) - MV-IPC-F467H-8G-256G1T-240User manual (PDF, Chinese) - MV-IPC-F467H-8G-256G1T-240CAD: 3D STEP + 2D DXF (ZIP) - MV-IPC-F467H-8G-256G1T-240
Features
- Supports Intel® Gen 6/7/8/9 Core™ i3/i5/i7/i9, Pentium® and Celeron® CPUs
- 2 DDR4 U-DIMM memory slots, expandable to 32 GB
- Expansion slots: 1 × PCIe x16, 1 × PCIe x4, 5 × PCI
- 2 GigE ports, 4 USB3.0 ports, 2 USB2.0 ports
- DVI + VGA + HDMI display outputs with independent dual displays
Specifications
| Model | MV-IPC-F467H-8G-256G1T-240 |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® CoreTM in LGA1151 package, Gen 6, 7, 8, Gen 9, i3, i5, i7 processors and Pentium®, Celeron® CPU; Max. CPU power: 95 W |
| Chip | Intel® H110 chipset, ATX motherboard |
| Memory | 2× DDR4 U-DIMM memory slots supported, 16 GB per module, Up to 32 GB |
| Storage | 3× 7-pin SATA 3.0 supported, 1 × M.2 SATA slot |
| Operating system | Windows 7/10, Linux |
| Network interface | 2 × Gigabit Ethernet ports (I219+RTL8111H) |
| USB Interface | 4× USB 3.0 ports, 2× USB 2.0 ports, ; Built-in 2× USB 2.0 (pin header), 2× onboard USB 2.0 ports for dongle |
| Serial Port | 1 × onboard RS232/RS485 port; 1 × internal RS232/RS485 header, 4 × RS232 headers |
| Extended interface | 1 × PCIe x16 (PCIe 3.0); 1 × PCIe x4 (PCIe 2.0); 5 × PCI (32-bit) |
| Display interface | Independent dual display supported; 1 × VGA, up to 1920×1080@60Hz; 1 × DVI-D, up to 1920×1080@60Hz; 1 × HDMI, up to 3840×2160@60Hz |
| Audio interface | Mic-in, Spk-out |
| GPIO | 8-bit GPIO |
| Power supply | 100 ~ 240V AC |
| Max. power consumption | 300 W |
| Installation method | Rack-mount and desktop |
| Dimension | 452 mm × 430 mm × 177 mm (L*W*H)) |
| Weight | Net weight approx. 13.8 kg |
| Temperature | Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 19.42 kg |
