Handheld code readers

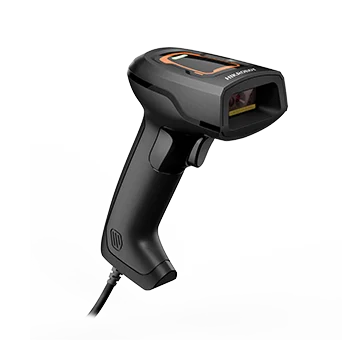

Hikrobot MV-IDH2000/13NR/05WP/U/PM Compact Industrial Wired Handheld Code Reader (USB)
Model MV-IDH2000/13NR/05WP/U/PM
Hikrobot MV-IDH2000/13NR/05WP/U/PM Compact Industrial Wired Handheld Code Reader. Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.
Datasheet (PDF) - MV-IDH2000/13NR/05WP/U/PMUser manual (PDF) - MV-IDH2000/13NR/05WP/U/PMCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH2000/13NR/05WP/U/PM
Features
- Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports multiple output modes, such as USB-HID, USB-CDC, and RS-232.
- Easy to replace components.
- IP42 and drop height of 1.8 m.
- Supports displaying device status via buzzer and indicator.
Specifications
| Model | MV-IDH2000/13NR/05WP/U/PM |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417 |
| Min. accuracy | 4 mil; 1D codes: 3 mil; 2D codes: 4 mil; 1D codes: 3 mil; 2D codes: 5 mil; 1D codes: 4 mil; 2D codes: 5 mil |
| Sensor type | CMOS |
| Resolution | 640 × 480; 1280 × 1024 |
| Depth of field | EAN 13 (13 mil): 30 mm to 240 mm; Code 39 (5 mil): 50 mm to 100 mm; Code 128 (10 mil): 30 mm to 240 mm; Data Matrix (10 mil): 40 mm to 130 mm; QR Code (15 mil): 15 mm to 205 mm; Code 128 (3 mil): 30 mm to 110 mm; Code 128 (10 mil): 20 mm to 205 mm; Data Matrix (5 mil): 40 mm to 85 mm; QR Code (10 mil): 20 mm to 140 mm; QR Code (20 mil): 20 mm to 200 mm; Code 128 (3 mil): 70 mm to 160 mm; Code 128 (10 mil): 30 mm to 440 mm; QR Code (10 mil): 45 mm to 235 mm; QR Code (15 mil): 20 mm to 360 mm; QR Code (20 mil): 20 mm to 460 mm; Code 39 (5 mil): 45 mm to 175 mm; Code 128 (10 mil): 10 mm to 415 mm; QR Code (10 mil): 35 mm to 220 mm; QR Code (15 mil): 10 mm to 350 mm; QR Code (20 mil): 10 mm to 415 mm |
| Field of view | Horizontal 42°, vertical 32°; Horizontal 39°, vertical 29°; Horizontal 47°, vertical 39° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°; Tilt angle ± 65°, skew angle ± 65°, rotation angle 360° |
| Symbol contrast | 20% |
| Communication protocol | SmartSDK, Serial, USB (HID/CDC) |
| Data interface | USB 2.0 |
| Power supply | 5 VDC |
| Current consumption | 0.9 A (max.), 0.5 A (typical) |
| Focal length | 3.1 mm; 4.9 mm; 3.9 mm |
| Ambient illumination | 0 lux to 100000 lux |
| Light source | White LED |
| Aiming system | Orange LED; Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.32 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the IDH2000 Series Handheld Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-IDH2000/03SR/03WN/U | 0.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000/13SR/05WP/U/PM | 0.3 MP | Price on request | 3 in stock | View |
| MV-IDH2000/13NR/05WN/U | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000B/03SR/03WN | 0.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000B/03SR/03WN/UC | 0.3 MP | Price on request | 5 in stock | View |
| MV-IDH2000B/13SR/05WN | 1.3 MP | Price on request | 5 in stock | View |
| MV-IDH2000B/13SR/05WN/UC | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000B/13NR/05WN | 1.3 MP | Price on request | 3 in stock | View |
| MV-IDH2000B/13NR/05WN/UC | 1.3 MP | Price on request | 3 in stock | View |
| MV-IDH2000B/CBASE/U | Price on request | 4 in stock | View | |
| MV-IDH2000RF/03SR/03WN | 0.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000RF/03SR/03WN/UC | 0.3 MP | Price on request | 3 in stock | View |
| MV-IDH2000RF/13SR/05WN | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000RF/13SR/05WN/UC | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000RF/13NR/05WN | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000RF/13NR/05WN/UC | 1.3 MP | Price on request | 3 in stock | View |
| MV-IDH2000P/13SR/05RN/U | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000P/13NR/05RN/U | 1.3 MP | Price on request | 5 in stock | View |
| MV-IDH2000PB/13SR/05RN/UC | 1.3 MP | Price on request | 5 in stock | View |
| MV-IDH2000PB/13NR/05RN | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000PB/13NR/05RN/UC | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000/13SR/05WN/U | 1.3 MP | Price on request | 5 in stock | View |
