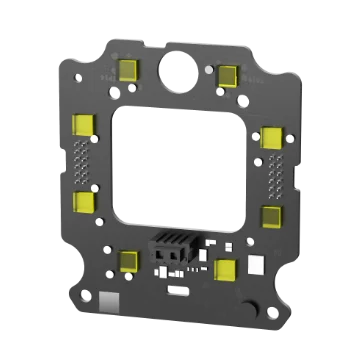

Hikrobot MV-IDA-L-8-47-41-B 8 LEDs, 47, 41, Blue light board

Name: Hikrobot MV-IDA-L-8-47-41-B 8 LEDs, 47, 41, Blue light board
Brand: Hikrobot
SKU: MV-IDA-L-8-47-41-B

Model MV-IDA-L-8-47-41-B

Hikrobot MV-IDA-L-8-47-41-B 8 LEDs, 47, 41, Blue light board. MV-IDA-L-8-47-41 8-LED light board with 4 independently controlled zones (top/bottom/left/right); choosing the right board for the site improves imaging for vision inspection

Datasheet (PDF, Chinese) - MV-IDA-L-8-47-41-B

Features

MV-IDA-L-8-47-41 8-LED light board with 4 independently controlled zones (top/bottom/left/right); choosing the right board for the site improves imaging for vision inspection

Specifications

Model	MV-IDA-L-8-47-41-B
Brand	Hikrobot
Light source type	Blue light, 8 LEDs
Light source wavelength	465 nm~475 nm
Emission angle	150°
Data interface	Ribbon cable connection
Power supply	12 ~ 24 VDC
Max. power consumption	12W
Dimension	47 mm × 41 mm
Shipping weight (estimated)	0.52 kg
