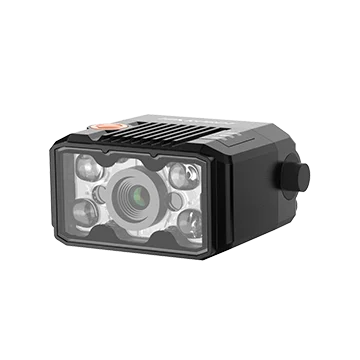

Hikrobot MV-ID3168M-IEC-06S-RBN 1.6 MP ultra-compact smart code reader
Model MV-ID3168M-IEC-06S-RBN
Hikrobot MV-ID3168M-IEC-06S-RBN 1.6 MP ultra-compact smart code reader. Ultra-compact: fits all kinds of machines and tight workstations Aviation connector: single-cable connection for simple routing
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- Aviation connector: single-cable connection for simple routing
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- External focus knob with visible focal plane
- Rich I/O interface and plug-in power connector for easy field wiring
Specifications
| Model | MV-ID3168M-IEC-06S-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN, UPCA, UPCE, etc.; 2D code: QR, DM, etc. |
| Max. frame rate | 60 fps |
| Max. reading speed | 31 codes/s |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9” |
| Resolution | 1408 × 1024 |
| Exposure time | 16 μs ~ 1 sec |
| Gain | 0 ~ 15 dB |
| Mono/color | Mono |
| Communication protocol | GigE: SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, Profinet, MELSEC, ; Ethernet/IP, ModBus, UDP, Fins, SLMP; USB: SmartSDK, USB |
| Data interface | Ethernet: Fast Ethernet (100 Mbit/s); USB: USB3.0 |
| Digital I/O | Ethernet: 17-pin M12 connector provides power and I/O: 4 non-isolated bidirectional I/O (default: 2 inputs, , 2 outputs), 1× RS-232, Device triggering via side button supported; USB: 17-pin M12 connector for data transfer, Device trigger via side button supported |
| Power supply | Ethernet: 12 to 24 V; USB: 5 V (USB3.0 powered) |
| Max. power consumption | Ethernet: 10.6 W @ 24 VDC; USB: 4.6 W @ 5 VDC |
| Focal length | 6mm |
| Working distance | 40 ~ 120 mm, Via top focus knob, Manual focus distance adjustment |
| Ambient illumination | 0 ~ 50000 lux |
| Light source | Red |
| Aiming system | Green LED |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 38 mm × 25 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.32 kg |
