Fixed code readers

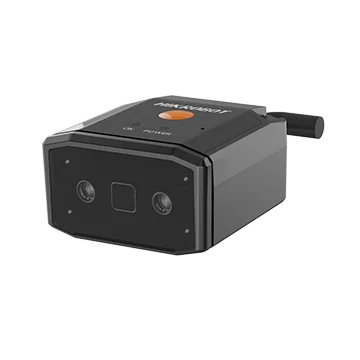

Hikrobot MV-ID3000EM-MED 1.3 MP ultra-compact smart code reader
Model MV-ID3000EM-MED
Hikrobot MV-ID3000EM-MED 1.3 MP ultra-compact smart code reader. Ultra-compact: fits all kinds of machines and tight workstations Rich I/O interface and plug-in power connector for easy field wiring
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- Rich I/O interface and plug-in power connector for easy field wiring
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- Beeper and status indicators show operating status for easy on-site setup
- One-click parameter tuning simplifies configuration
Specifications
| Model | MV-ID3000EM-MED |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc. |
| Max. frame rate | 50 fps |
| Max. reading speed | 30 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.7 μm × 2.7 μm |
| Sensor size | 1/4” |
| Resolution | 1280 × 1024 |
| Exposure time | 60 μs ~ 0.6 sec |
| Gain | 1 ~ 28 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, EthernetIP |
| Depth of field | Code 39(5 mil):40 ~ 120 mm; Code 128(10 mil):15 ~ 250 mm; EAN13(13 mil):30 ~ 280 mm; QR Code(10 mil):35 ~ 155 mm; QR Code(15 mil):15 ~ 215 mm; QR Code(20 mil):15 ~ 270 mm |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Digital I/O | DB15 connector for power and I/O, Incl. 2 non-isolated inputs (Line 0/1), 2 non-isolated outputs (Line 2/3), 1× RS-232, Device trigger via side button supported |
| Power supply | 12 ~ 24 VDC |
| Max. power consumption | 2.5 W@12 VDC |
| Focal length | 2.45 mm |
| Lens mount | M5.4-Mount |
| Ambient illumination | 0 ~ 10000 lux |
| Light source | Red |
| Aiming system | Green LED |
| Dimension | 45 mm × 43 mm × 25 mm |
| Indicator | Power indicator (POWER), status indicator (OK/NG) |
| Weight | Approx. 68.5 g (0.2 lb.) |
| Ingress protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.20 kg |
