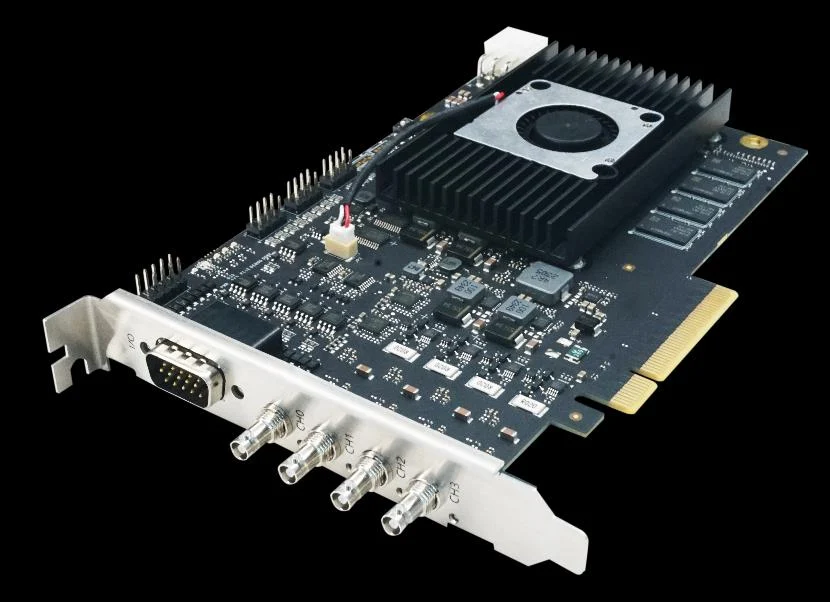

Hikrobot MV-GY1002 Dual CXP-12 Frame Grabber
Model MV-GY1002
Hikrobot MV-GY1002 Dual CXP-12 Frame Grabber. Supports the CXP-12 protocol, up to 12.5 Gbps per link Supports PoCXP, up to 13 W per channel
Features
- Supports the CXP-12 protocol, up to 12.5 Gbps per link
- Supports PoCXP, up to 13 W per channel
- Bus and channel indicators show the card status in real time
- Rich I/O, multiple inputs and outputs integrated
- SDK provided for secondary development
- Follows the GenICam standard
Specifications
| Model | MV-GY1002 |
|---|---|
| Brand | Hikrobot |
| On-board memory | 2 GB per the datasheet's ordering list (its spec table prints 4 GB DDR4-RAM for the series) |
| Bus interface | PCI-E gen3 x4 |
| Bus performance | 3900 MB/s (peak transfer bandwidth), 3350 MB/s (sustained transfer bandwidth) |
| Bus indicator | 1 |
| Standard | CoaXPress 2.1 |
| Connectors | Bracket I/O: DB15 male; header I/O: 9-pin header (2.54 mm pitch, 2 x 5, pin 10 blanked) |
| Power output | PoCXP, up to 13 W @ 24 VDC per channel |
| Supported cameras | CXP-6 / CXP-12 interface industrial cameras |
| Number of cameras | Up to 2 (1 or 2 cameras) |
| Camera link rate | 1.25 / 2.5 / 3.125 / 5 / 6.25 / 10 / 12.5 Gbps (CXP-1/2/3/5/6/10/12) |
| Stream channels | 2 |
| Channel indicators | 2 |
| Pixel format | Mono 8/10/12/16, Bayer 8/10/12, RGB 8 |
| I/O type | 11 configurable inputs/outputs, single-ended or differential compatible; bracket I/O: Line 0-6, 3.3-24 V; header I/O: Line 7-10, 3.3-24 V |
| Typical power consumption | 15.7 W (excluding PoCXP) |
| Dimension | 181 mm x 126.3 mm x 21.6 mm |
| Temperature | Working temperature 0 to 55 °C, storage temperature -20 to 70 °C |
| Humidity | 10% to 95% RH, no condensation |
| Software | MVS |
| Operating system | Windows 7/10/11; Linux: 64-bit Ubuntu 18.04 to 24.04 |
| Certification | CE, KC, RoHS |
| Shipping weight | 0.60 kg |
