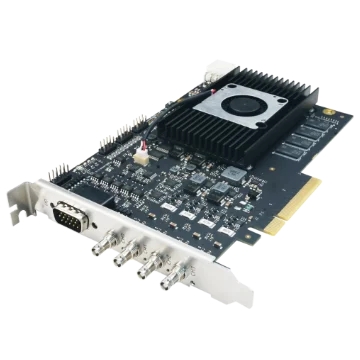

Hikrobot MV-GY1004 Quad CXP-12 Frame GrabberV2.0
Model MV-GY1004
Hikrobot MV-GY1004 Quad CXP-12 Frame GrabberV2.0. Supports CXP-12 protocol with each channel accessing up to 12.5 Gbps data transfer speed. Supports PoCXP with each channel providing 13 W at most.
Features
- Supports CXP-12 protocol with each channel accessing up to 12.5 Gbps data transfer speed.
- Supports PoCXP with each channel providing 13 W at most.
- Various indicators indicate frame grabber status in real time.
- Adopts multiple I/O connectors for input and output.
- Provides SDK for secondary development.
- Complies with Genlcam standard.
Specifications
| Model | MV-GY1004 |
|---|---|
| Brand | Hikrobot |
| On-board memory | 4 GB DDR4-RAM |
| Interconnect | PCI-E gen3 × 8 |
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth); 6700 MB/s (sustained transmission bandwidth) |
| Bus indicator | 1 |
| Standard | CoaXPress 2.1 |
| Interface | HD-BNC × 4 |
| Power output | PoCXP, each channel provides 13 W @ 24 VDC at most |
| Camera type supported | CXP-6/CXP-12 connector industrial camera |
| Camera quantity supported | 4 at most, supports connecting 1 to 4 camera(s) |
| Camera connection speed | 1.25/2.5/3.125/5/6.25/10/12.5 Gbps (CXP-1/2/3/5/6/10/12) |
| Stream | 4 |
| Stream indicator | 4 |
| Pixel format | Mono 8/10/12/16; Bayer 8/10/12; RGB 8 |
| I/O Type | Configurable input/output × 11, compatible with single-ended/differential; I/O on bracket: Line 0 to Line 6 supports input and output (3.3 V to 24 V).; I/O on PCB: Line 7 to Line 10 supports input and output (3.3 V to 24 V). |
| Connector | Connector of I/O on bracket: DB15 male connector; Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Power consumption | Typ. 16.8 W (without PoCXP) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.38 kg |
