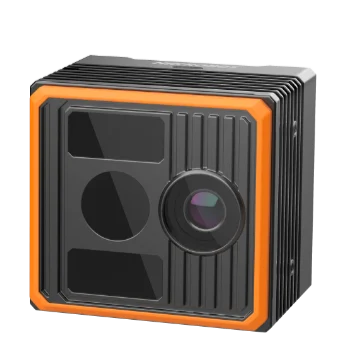

Hikrobot MV-DT1300S iToF smart 3D camera
Model MV-DT1300S
Hikrobot MV-DT1300S iToF smart 3D camera. Time-of-flight technology with smart depth enhancement for complete, real-time depth data Multi-VCSEL projection: high energy, excellent ambient light resistance, stable imaging
Datasheet (PDF, Chinese) - MV-DT1300SUser manual (PDF, Chinese) - MV-DT1300SCAD: 3D STEP + 2D DXF (ZIP) - MV-DT1300S
Features
- Time-of-flight technology with smart depth enhancement for complete, real-time depth data
- Multi-VCSEL projection: high energy, excellent ambient light resistance, stable imaging
- High-resolution RGB with long working distance and large depth of field
- High IP67 protection rating for a wide range of applications
- Factory-calibrated intrinsics, suited to vision-guided depalletizing
Specifications
| Model | MV-DT1300S |
|---|---|
| Brand | Hikrobot |
| Working range | 0.5 ~ 5 m |
| Near field of view | 1200 mm × 900 mm @ 1000 mm |
| Typical field of view | 2400 mm × 1800 mm @ 2000 mm |
| Far field of view | 4200 mm × 3100 mm @ 3500 mm |
| Field of view | Depth map FOV: 64° × 50°; RGB image FOV: 66° × 56° |
| Repeatability (Z-axis)* | (5+0.1%depth) mm |
| Measurement accuracy | 8 mm @ 2000 mm; 12 mm @ 3500 mm |
| Resolution | 1536 × 1280 @ RGB image; 640 × 480 @ depth map |
| Max. frame rate | 30 fps |
| Image output latency | Approx. 40 ms |
| Data type | Raw image, Amplitude image, Depth map |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 VDC |
| Power consumption | Approx. 11 W @ 24 VDC |
| Dimension | 80 mm × 75 mm × 64.5 mm |
| Weight | Approx. 0.49 kg |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Laser safety class | Class 1 |
| Wavelength | 940 nm |
| Client software | HiViewer, VM 3D |
| Operating system | Windows 7/10 32/64 bits, Windows 11 64 bits |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.79 kg |
