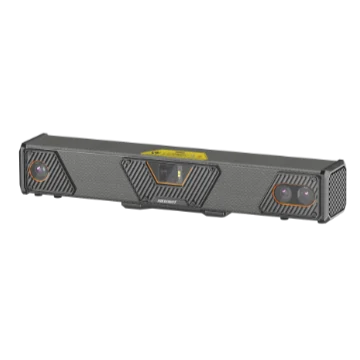

Hikrobot MV-DLS1300P Laser galvanometer stereo camera
Model MV-DLS1300P
Hikrobot MV-DLS1300P Laser galvanometer stereo camera. Custom optical system for excellent image quality Highly uniform laser for complete, detailed point clouds
Features
- Custom optical system for excellent image quality
- Highly uniform laser for complete, detailed point clouds
- Multi-core parallel processing architecture for high efficiency
- Synchronized, aligned RGB and depth maps for fast, easy secondary development
- High-strength carbon fiber design for high stability
- Extra-wide field of view for long-distance applications
Specifications
| Model | MV-DLS1300P |
|---|---|
| Brand | Hikrobot |
| Near field of view | 1360 mm × 1200 mm@1500 mm |
| Far field of view | 3200 mm × 2800 mm@3500 mm |
| Typical field of view | 2200 mm × 2000 mm@2500 mm |
| Clearance distance (CD) | 1500 mm |
| Measurement range (MR) | 2000 mm |
| Resolution | 3200 × 2400 @ RGB image; 1440 × 1152 @ depth map |
| Repeatability (Z-axis)* | 0.3 mm@2500 mm1 |
| VDI/VDE accuracy | 0.4 mm@2500 mm2 |
| Acquisition time | 0.4 ~ 0.9 s |
| Data type | Raw image (mono + color), Depth map, RGB-D image |
| Image output latency | 0.9 ~ 1.6 s |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 VDC |
| Power consumption | 16W@24 VDC |
| Dimension | 456.1 mm × 79.8 mm × 98.5 mm |
| Weight | Approx. 1.5 kg |
| Ingress protection | IP65 |
| Temperature | Operating temp.: -10 to 45 °C, Storage temp.: -30 to 80 °C |
| Humidity | 20% to 85% RH (non-condensing) |
| Laser safety class | Class 2 |
| Wavelength | 638 nm |
| Client software | RobotPilot, HiViewer |
| Operating system | 32/64-bit Windows 7/10 |
| Certification | RoHS |
| Shipping weight (estimated) | 2.20 kg |
