Hikrobot MV-DPS250P-03W Projected structured-light 3D camera
Model MV-DPS250P-03W

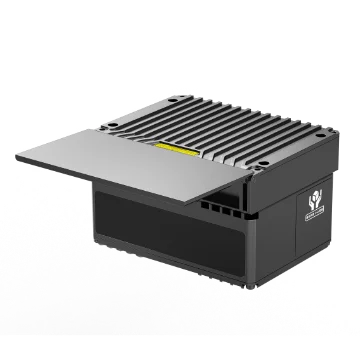

Hikrobot MV-DPS250P-03W Projected structured-light 3D camera. Custom optical system for excellent image quality High-performance structured-light projection for complete, detailed point clouds
Datasheet (PDF, Chinese) - MV-DPS250P-03WUser manual (PDF, Chinese) - MV-DPS250P-03WCAD: 3D STEP + 2D DXF (ZIP) - MV-DPS250P-03W
Features
- Custom optical system for excellent image quality
- High-performance structured-light projection for complete, detailed point clouds
- Multi-core parallel processing architecture for high efficiency
- Synchronized RGB and depth maps for fast, easy development
- Motorized flip-cover protection, compact and lightweight, highly synchronized control, flexible mounting
Specifications
| Model | MV-DPS250P-03W |
|---|---|
| Brand | Hikrobot |
| Near field of view | 260 mm × 200 mm@300 mm |
| Far field of view | 720 mm × 590 mm@900 mm |
| Clearance distance (CD) | 300 mm |
| Measurement range (MR) | 600 mm |
| Repeatability (Z-axis)* | 0.05 mm@600 mm |
| VDI/VDE accuracy | 0.08 mm@600 mm |
| Resolution | 3200 × 1944 @ RGB image; 1632 × 1264 @ depth map |
| Acquisition time | 0.2 ~ 0.7 s |
| Data type | Raw image (mono + color), Depth map, RGB-D image |
| Image output latency | 0.5 ~ 1.2 s |
| Light source | Blue LED (450 nm, RG2) |
| Dimension | 126 mm × 100 mm × 75 mm |
| Weight | 1.18 kg |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 V DC |
| Power consumption | 14 W@24 V DC |
| Client software | RobotPilot, HiViewer |
| Operating system | Windows 10 32/64bits, Windows 11 64bit |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 1.75 kg |
