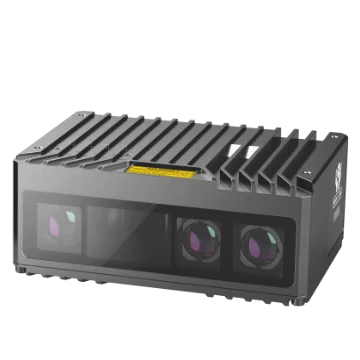

Hikrobot MV-DPS250P-03 Projected structured-light 3D camera
Model MV-DPS250P-03
Hikrobot MV-DPS250P-03 Projected structured-light 3D camera. Custom optical system for excellent image quality High-performance structured-light projection for complete, detailed point clouds
Features
- Custom optical system for excellent image quality
- High-performance structured-light projection for complete, detailed point clouds
- Multi-core parallel processing architecture for high efficiency
- Synchronized RGB and depth maps for fast, easy development
- Lightweight design: small size, high stability, flexible installation
Specifications
| Model | MV-DPS250P-03 |
|---|---|
| Brand | Hikrobot |
| Near field of view | 260 mm × 200 mm@300 mm |
| Far field of view | 720 mm × 590 mm@900 mm |
| Clearance distance (CD) | 300 mm |
| Measurement range (MR) | 600 mm |
| Repeatability (Z-axis)* | 0.05 mm@600 mm |
| VDI/VDE accuracy | 0.08 mm@600 mm |
| Resolution | 3200 × 1944 @ RGB image; 1632 × 1264 @ depth map |
| Acquisition time | 0.2 s ~ 0.7 s |
| Data type | Raw image (mono + color), Depth map, RGB-D image |
| Image output latency | 0.5 s ~ 1.2 s |
| Light source | Blue LED (450 nm, RG2) |
| Dimension | 126 mm × 90 mm × 50 mm |
| Weight | 0.74 kg |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 V DC |
| Power consumption | 11 W@24 V DC |
| Client software | HiViewer, RobotPilot |
| Operating system | Windows 10 32/64bits, Windows 11 64bit |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 1.14 kg |
