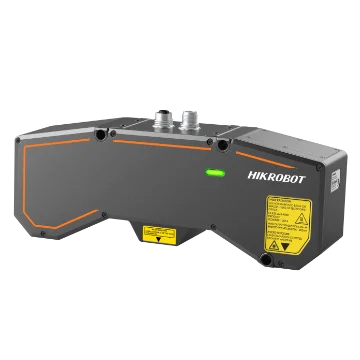

Hikrobot MV-DP3120-01D 3D laser profile sensor, DP3000 series binocular single-line
Model MV-DP3120-01D
Hikrobot MV-DP3120-01D 3D laser profile sensor, DP3000 series binocular single-line. Dual image sensor design eliminates blind spots and suppresses stray light Built-in high-precision 3D algorithm with sub-micron repeatability
Datasheet (PDF, Chinese) - MV-DP3120-01DUser manual (PDF, Chinese) - MV-DP3120-01DCAD: 3D STEP + 2D DXF (ZIP) - MV-DP3120-01D
Features
- Dual image sensor design eliminates blind spots and suppresses stray light
- Built-in high-precision 3D algorithm with sub-micron repeatability
- High-frame-rate image sensor with scan rates up to 46.7 kHz
- Multiple exposure modes for wider dynamic range
- Image fusion algorithm for more complete point cloud data
- Selectable filtering modes for more stable point cloud data
Specifications
| Model | MV-DP3120-01D |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 3200 |
| Reference distance | 125 mm |
| Measurement range (Z-axis) | 80.0 mm |
| Measurement range (X-axis) | 61 mm @ near end; 77.6 mm @ reference distance; 94.2 mm @ far end |
| Profile data interval | 19.4 μm ~ 31.4 μm |
| Scan frame rate | 1.3k Hz (at max. measurement range), Up to 19k Hz (ROI mode) |
| Data output | Profile data, Depth map, Intensity image, Line-width image |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | Class3R |
| Resolution (Z-axis) | 4.23 μm ~ 7.47 μm |
| Repeatability (Z-axis)* | 1.55 μm @ standard gauge block measured with the sensor on an optical table |
| Linearity Z-axis (±% of MR) | 0.008 |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | 21 W@24 VDC |
| Dimension | 258 mm × 96.5 mm × 66 mm |
| Weight | Approx. 1532 g |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | 3DMVS, VM3D, or third-party 3D software |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
| Shipping weight (estimated) | 2.24 kg |
