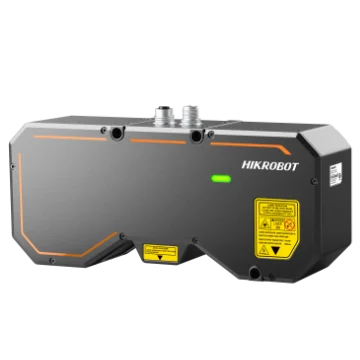

Hikrobot MV-DP3062-01D V2.0 3D laser profile sensor, DP3000 series binocular single-line V2.0
Model MV-DP3062-01D V2.0
Hikrobot MV-DP3062-01D V2.0 3D laser profile sensor, DP3000 series binocular single-line V2.0. Dual image sensor design eliminates blind spots and suppresses stray light Built-in high-precision 3D algorithm with sub-micron repeatability
Datasheet (PDF, Chinese) - MV-DP3062-01D V2.0User manual (PDF, Chinese) - MV-DP3062-01D V2.0CAD: 3D STEP + 2D DXF (ZIP) - MV-DP3062-01D V2.0
Features
- Dual image sensor design eliminates blind spots and suppresses stray light
- Built-in high-precision 3D algorithm with sub-micron repeatability
- High-frame-rate image sensor: scan rate up to 46.7 kHz
- Multiple exposure modes for wider dynamic range
- Image fusion algorithm for more complete point cloud data
- Selectable filtering modes for more stable point cloud data
Specifications
| Model | MV-DP3062-01D V2.0 |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 3200 |
| Reference distance | 61.5 mm |
| Measurement range (Z-axis) | 11.0 mm |
| Measurement range (X-axis) | 16.6 mm @ near end; 17.8 mm @ reference distance; 19.0 mm @ far end |
| Resolution (Z-axis) | 0.93 μm ~ 1.23 μm |
| Repeatability (Z-axis)* | 0.24 μm @ standard gauge block measured with the sensor on an optical table |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 5.5 μm ~ 6.2 μm |
| Data output | Profile data, Depth map, Intensity image, Line-width image |
| Scan frame rate | 1.68 μm @ data that sensor tests gauge block on optical platform |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | 405 nm |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 connector for power and I/O, 2 differential inputs (Line 3/6), 2 opto-isolated inputs (Line 0/9), 1 differential output (Line 1) |
| Power supply | 24 VDC |
| Power consumption | 28 W@24 VDC |
| Dimension | 255 mm × 109 mm × 67 mm |
| Weight | Approx. 2150 g |
| Ingress protection | IP67 |
| Temperature | Operating temperature: 0 °C to 40 °C, Storage temp.: -30 °C to 80 °C |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | 3DMVS, VM3D, or third-party 3D software |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
| Shipping weight (estimated) | 3.11 kg |
