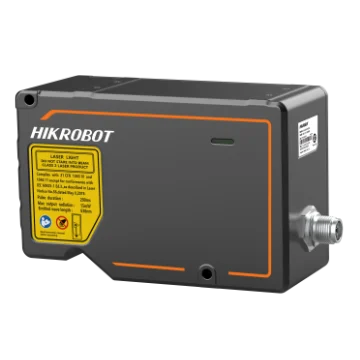

Hikrobot MV-DP2023-01P V2.0 MV-DP2062-01P V2.0
Model MV-DP2023-01P V2.0
Hikrobot MV-DP2023-01P V2.0 MV-DP2062-01P V2.0. Built-in high-precision measurement algorithm with sub-micron accuracy High-frame-rate sensor with scan rates up to 23.9 kHz
Datasheet (PDF, Chinese) - MV-DP2023-01P V2.0User manual (PDF, Chinese) - MV-DP2023-01P V2.0CAD: 3D STEP + 2D DXF (ZIP) - MV-DP2023-01P V2.0
Features
- Built-in high-precision measurement algorithm with sub-micron accuracy
- High-frame-rate sensor with scan rates up to 23.9 kHz
- Multiple exposure modes for greater robustness
- Multi-frame fusion algorithm for more complete contours
- Selectable filtering modes for more stable data
- ROI selection and one-click tuning for easier operation
Specifications
| Model | MV-DP2023-01P V2.0 |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 3200 |
| Reference distance | 23.3 mm |
| Measurement range (Z-axis) | 7.8 mm |
| Measurement range (X-axis) | 14.5 mm @ near end; 16 mm @ reference distance; 17.5 mm @ far end |
| Resolution (Z-axis) | 0.56 ~ 0.82 μm |
| Repeatability (Z-axis)* | 0.27 μm @ sensor measuring standard gauge blocks on an optical table1 |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 4.5 ~ 5.9 μm |
| Data output | Profile data, depth image, brightness image |
| Scan frame rate | 1.7 kHz to 23.9 kHz (high frame rate mode) |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | 405 nm |
| Data interface | Gigabit Ethernet(1000Mbit/s), Compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, 2 differential inputs (Line 3/6), 1 single-ended; signal input (Line 0), 1 differential bidirectional IO (Line 1) |
| Power supply | 24 VDC |
| Power consumption | 15.1 W@24 VDC |
| Dimension | 125.5 mm × 82 mm × 54 mm |
| Weight | Approx. 750 g |
| Ingress protection | IP67 |
| Temperature | Operating temperature 0 to 40°C, Storage temp.: -30 to 80 °C |
| Humidity | 20% to 85% RH (non-condensing) |
| Client software | 3DMVS |
| Operating system | Windows 7/10 32/64bits, Windows 11 64-bit (8G memory, i5 processor) |
| Shipping weight (estimated) | 1.15 kg |
