3D sensors

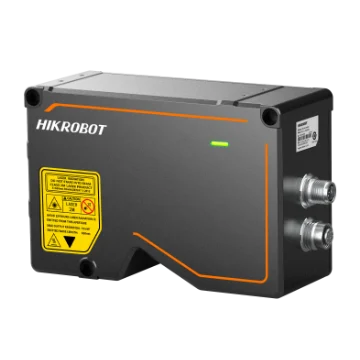

Hikrobot MIS-DP2850-10P 3D laser profile sensor
Model MIS-DP2850-10P
Hikrobot MIS-DP2850-10P 3D laser profile sensor. Built-in high-precision algorithm with sub-micron accuracy High-frame-rate sensor with scan rates up to 23.9 kHz
Features
- Built-in high-precision algorithm with sub-micron accuracy
- High-frame-rate sensor with scan rates up to 23.9 kHz
- Multiple exposure modes for greater robustness
- Multi-frame fusion algorithm for more complete contours
- Selectable filtering modes for more stable data
- ROI selection and one-click setup for easier operation
Specifications
| Model | MIS-DP2850-10P |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 3200 |
| Reference distance | 120 mm |
| Measurement range (Z-axis) | 80 mm |
| Measurement range (X-axis) | 58 mm @ near end; 76.5 mm @ reference distance; 95 mm @ far end |
| Resolution (Z-axis) | 3.66~ 8.36 μm |
| Repeatability (Z-axis)* | Class 3R |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 18.2 ~ 31.7 μm |
| Scan frame rate | 1.7 kHz to 23.9 kHz (high frame rate mode) |
| Data output | 0.01 |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | Class3R |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1) |
| Power supply | 24 VDC |
| Power consumption | 15.2 W@24 VDC |
| Dimension | 144.5 mm × 96 mm × 58 mm |
| Weight | Approx. 950 g (2.1 lb.) |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | 3DMVS, VM3D, or third-party software |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
| Shipping weight (estimated) | 1.43 kg |
