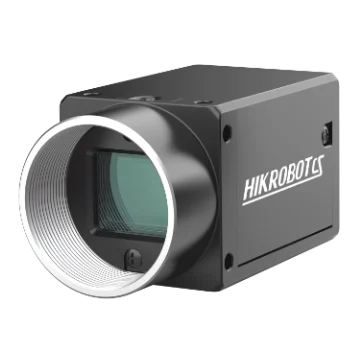

Hikrobot MV-CS060-10GM V5 6MP Area Scan Camera, GigE, V5, Mono
Model MV-CS060-10GM V5
Hikrobot MV-CS060-10GM V5 6MP Area Scan Camera, GigE, V5, Mono. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, LUT, and Gamma correction, etc.
Datasheet (PDF) - MV-CS060-10GM V5User manual (PDF) - MV-CS060-10GM V5CAD: 3D STEP + 2D DXF (ZIP) - MV-CS060-10GM V5
Features
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, LUT, and Gamma correction, etc.
- Supports CCM function to provide high-quality images.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CS060-10GM V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Exposure time | 25 μs to 2.5 sec |
| Gain | 0 dB to 24 dB |
| Mono/color | Mono |
| Max. frame rate | 19.5 fps @ 3072 × 2048 Mono 8 |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Sensor model | Sony® IMX178 |
| Dynamic range | 71.3 dB |
| SNR | 41.3 dB |
| Exposure mode | Off/Once/Continuous exposure mode, and supports Global Reset |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power consumption | Typ. 1.4 W @ 12 VDC |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Lens mount | C-mount |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
