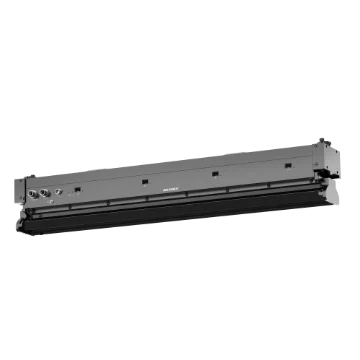

Hikrobot MV-CIS-660mm-18-91F4M CIS macro line scan camera, 660 mm scan width, 1800dpi, XoFLink fiber port, 80kHz
Model MV-CIS-660mm-18-91F4M
Hikrobot MV-CIS-660mm-18-91F4M CIS macro line scan camera, 660 mm scan width, 1800dpi, XoFLink fiber port, 80kHz. All-in-one integration reduces equipment footprint 1:1 imaging without the distortion of conventional lenses
Datasheet (PDF, Chinese) - MV-CIS-660mm-18-91F4MUser manual (PDF, Chinese) - MV-CIS-660mm-18-91F4MCAD: 3D STEP + 2D DXF (ZIP) - MV-CIS-660mm-18-91F4M
Features
- All-in-one integration reduces equipment footprint
- 1:1 imaging without the distortion of conventional lenses
- Scan accuracy up to 1800 dpi for high-precision inspection
- Available in multiple custom lengths, replacing multi-camera stitching setups
- Built-in line-scan camera ISP functions for quick, easy parameter adjustment
Specifications
| Model | MV-CIS-660mm-18-91F4M |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 14 μm × 14 μm |
| Resolution | 47616 × 3 |
| Image mode | 1-Line, 2-TDI, 3-TDI |
| Max. line rate | 81 kHz(1-Line), 27 kHz(2-TDI & 3-TDI) |
| Transmission mode | 4Link |
| Dynamic range | 68.1 dB |
| SNR | 44.3 dB |
| Field of view width | 660 mm |
| Accuracy | 1800 dpi |
| Working distance | 15 mm ± 0.6 mm |
| Gain | 1.0× |
| Exposure time | 8 μs ~ 10 ms |
| Exposure mode | Auto exposure, Manual exposure, One-touch exposure |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | 1 × 1, 1 × 2, 1 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger |
| Data interface | 4 × LC fiber port |
| Digital I/O | LED_PWR: 2-pin connector for light power; CAM_PWR: 2-pin connector for camera power; I/O: 12-pin P10 connector for camera I/O |
| Power supply | Camera: 24 VDC; Light: 24 VDC |
| Power consumption | Camera: 62.6 W @ 24 VDC; Light (continuous): 50.5 W @ 24 VDC |
| Dimension | 743.1 mm × 94.5 mm × 140.6 mm (incl. light, camera at middle position); 743.1 mm × 94.5 mm × 136.6 mm (excluding light, camera at middle position) |
| Weight | Approx. 7.9 kg |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 11.16 kg |
