Line scan cameras

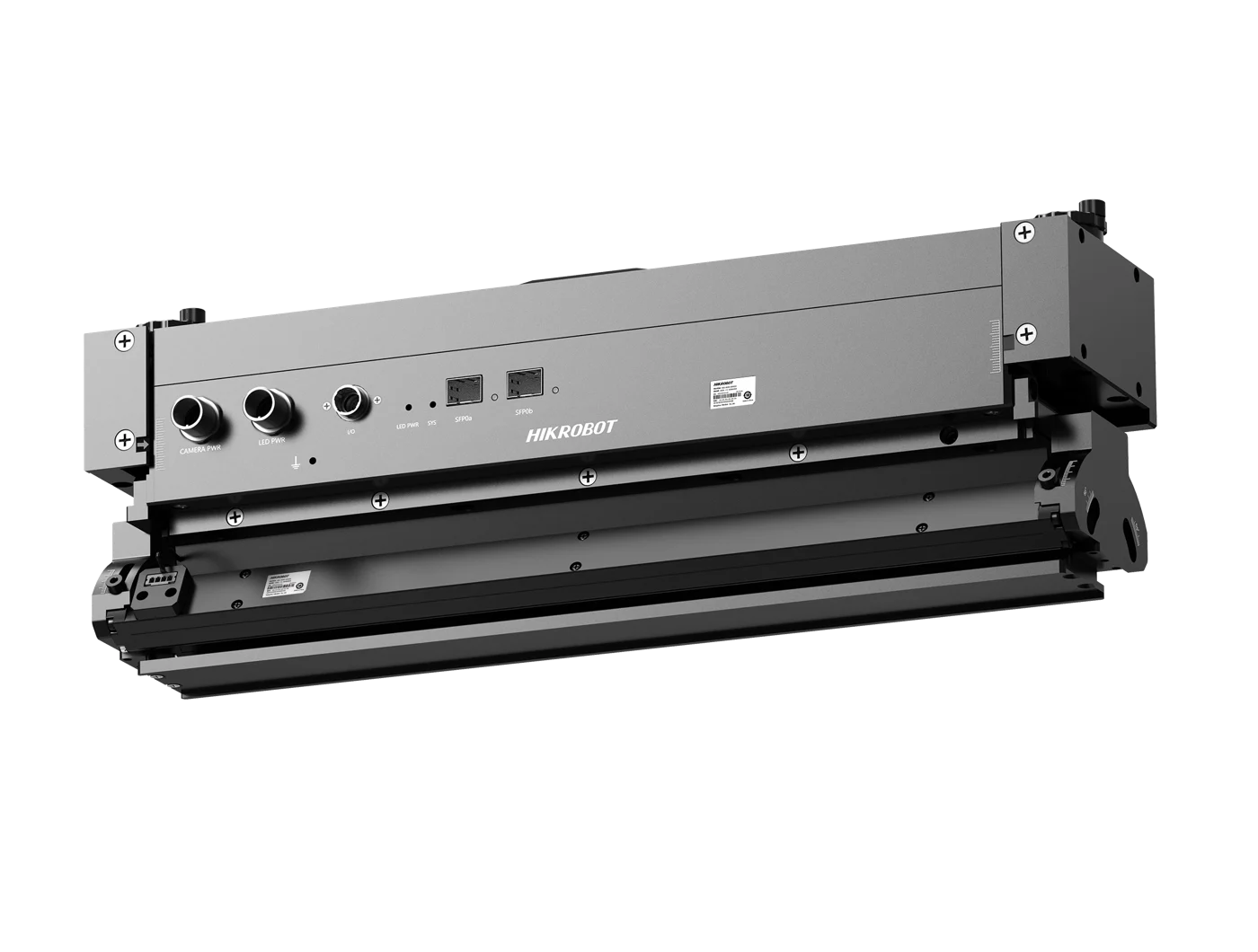

Hikrobot MV-CIS-330mm-18-91F2M-KIT MV-CIS-330mm-18-91F2M (incl. frame grabber, and cable accessories kit)
Model MV-CIS-330mm-18-91F2M-KIT
Hikrobot MV-CIS-330mm-18-91F2M-KIT MV-CIS-330mm-18-91F2M. All-in-one integration reduces equipment footprint 1:1 imaging without the distortion of conventional lenses
Features
- All-in-one integration reduces equipment footprint
- 1:1 imaging without the distortion of conventional lenses
- Scan accuracy up to 1800 dpi for high-precision inspection
- Replaces multi-camera stitching setups
- Built-in line-scan camera ISP functions for quick, easy parameter adjustment
Specifications
| Model | MV-CIS-330mm-18-91F2M-KIT |
|---|---|
| Brand | Hikrobot |
| Pixel size | 14 μm × 14 μm |
| Resolution | 23424 × 3 |
| Image mode | 1-Line, 2-TDI, 3-TDI |
| Max. line rate | 81 kHz(1-Line), 27 kHz(2-TDI & 3-TDI) |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Data interface | 2LC fiber port |
| Digital I/O | LED_PWR: 2-pin connector for light power; CAM_PWR: 2-pin connector for camera power; I/O: 12-pin P10 connector for camera I/O |
| Power supply | Camera: 24 VDC; Light: 24 VDC |
| Power consumption | Camera: 23.4 W @ 24 VDC; Light (continuous): 31.8 W @ 24 VDC |
| Dimension | 404 mm × 94.5 mm × 140.6 mm (incl. light, camera at middle position); 404 mm × 94.5 mm × 136.6 mm (excluding light, camera at middle position) |
| On-board memory | 2 GB DDR4 |
| Interconnect | PCI-E gen3 × 4 |
| Standard | XoFLink |
| SFP+ module | 2 × SFP+ |
| Data interface (frame grabber) | 2LC fiber port |
| Camera quantity supported | 1/2 |
| Camera connection speed | 10 Gbps per interface, Total bandwidth 20 Gbps |
| I/O Type | Provides 11 configurable I/O connectors, compatible with single-ended/differential signals, and supports cascading of multiple frame grabbers.; I/O on bracket: Line 0 to Line 7 supports input (3.3 V to 24 V) and output (max. 24 V); I/O on PCB: Line 8 to Line 10 supports input (3.3 V to 12 V) and output (3.3 V) |
| Connector | I/O on bracket: Mini-DP, female, 20-pin; I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes) |
| Power consumption (frame grabber) | 9.8 W |
| Dimension (frame grabber) | 181 mm × 126.3 mm × 21.6 mm |
| Interface type | SFP+ |
| Connector type | LC (2-core) |
| Transmission distance | <300 m |
| Shipping weight (estimated) | 0.80 kg |
