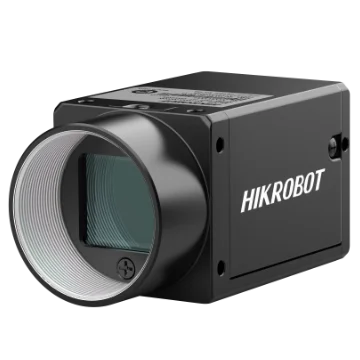

Hikrobot MV-CI050-Y1S-NN 5MP SWIR area scan camera, IMX992, 1link CXP-12, fanless, without heat sink
Model MV-CI050-Y1S-NN
Hikrobot MV-CI050-Y1S-NN 5MP SWIR area scan camera, IMX992, 1link CXP-12, fanless, without heat sink. Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm. Supports multiple ISP functions like digital noise reduction, contrast ratio, etc.
Features
- Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm.
- Supports multiple ISP functions like digital noise reduction, contrast ratio, etc.
- Adopts compact structure and design to meet spatial requirements.
- Adopts CXP-12 interface to transmit data.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CI050-Y1S-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | InGaAs, global shutter |
| Sensor model | Sony® IMX992 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/1.4" |
| Resolution | 2592 × 2056 |
| Max. frame rate | 120 fps @ 2592 × 2056 Mono 8 |
| Dynamic range | 50.6 dB |
| SNR | 47.7 dB |
| Gain | 0 dB to 18 dB |
| Exposure time | UltraShort exposure mode: 8 μs to 14 μs; SuperShort exposure mode: 15 μs to 22 μs; Standard exposure mode: 23 μs to 100 ms |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 2 × 2, 3 × 3, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoCXP |
| Power consumption | Typ. 4.2 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | Device with heat sink: 29 mm × 85.6 mm × 42 mm (1.1" × 3.4" × 1.7"); Device without heat sink: 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Device with heat sink: Approx. 170 g (0.4 lb.); Device without heat sink: Approx. 90 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 40 °C (14 °F to 104 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.34 kg |
