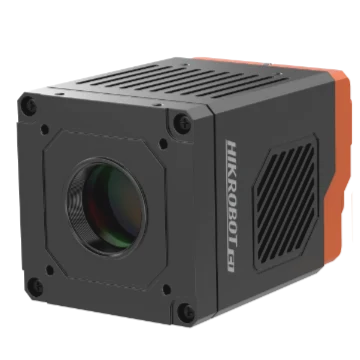

Hikrobot MV-CI013-GS-TF 1.3MP SWIR Camera, IMX990, GigE, with TEC and fan
Model MV-CI013-GS-TF
Hikrobot MV-CI013-GS-TF 1.3MP SWIR Camera, IMX990, GigE, with TEC and fan. Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm. Supports TEC to provide good cooling effect.
Datasheet (PDF) - MV-CI013-GS-TFUser manual (PDF) - MV-CI013-GS-TFCAD: 3D STEP + 2D DXF (ZIP) - MV-CI013-GS-TF
Features
- Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm.
- Supports TEC to provide good cooling effect.
- Multiple ISP functions like digital noise reduction, contrast ratio, etc.
- Adopts compact structure and design to meet spatial requirements.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CI013-GS-TF |
|---|---|
| Brand | Hikrobot |
| Sensor type | InGaAs |
| Sensor model | Sony® IMX990 |
| Pixel size | 5 μm × 5 μm |
| Sensor size | 1/2" |
| Resolution | 1280 × 1024 |
| Max. frame rate | 91 fps @ 1280 × 1024 |
| Dynamic range | 56 dB |
| SNR | 52.2 dB |
| Gain | 0 dB to 18 dB |
| Exposure time | UltraShort exposure mode: 3 μs to 7 μs; Standard exposure mode: 8 μs to 0.1 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 11.7 W @ 12 VDC (TEC enabled) |
| Lens mount | C-mount |
| Installation method | Installation via three-side screw holes |
| Dimension | 58 mm × 58 mm × 82 mm (2.3" × 2.3" × 3.2") |
| Weight | Approx. 470 g (1.0 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 50 °C (–22 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.76 kg |
