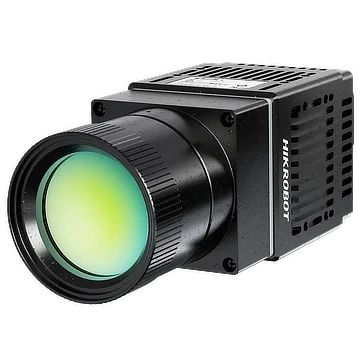

Hikrobot MV-CI003-GL-T6 0.3MP LWIR Camera, GigE, 6mm, Temperature measurement type
Model MV-CI003-GL-T6
Hikrobot MV-CI003-GL-T6 0.3MP LWIR Camera, GigE, 6mm, Temperature measurement type. Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP. Supports temperature measurement rules of point, polygon, line and circle.
Datasheet (PDF) - MV-CI003-GL-T6User manual (PDF) - MV-CI003-GL-T6CAD: 3D STEP + 2D DXF (ZIP) - MV-CI003-GL-T6
Features
- Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP.
- Supports temperature measurement rules of point, polygon, line and circle.
- Supports single-region and multi-region temperature measurement alarm settings.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CI003-GL-T6 |
|---|---|
| Brand | Hikrobot |
| Sensor type | Vanadium oxide uncooled detector |
| Pixel size | 17 μm |
| Resolution | 640 × 512 |
| Max. frame rate | 50 fps @ 640 × 512 |
| NETD | < 50 mk (F1.0, 30 °C) |
| Pixel format | Mono 16, Float 32, YUV422(YUYV)Packed, YUV 422 Packed |
| Color palettes | White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot |
| Image process | Supports brightness, contrast, Gamma correction |
| Focal length | 6.3 mm |
| Field of view | 88.5° × 73.2° |
| Space resolution | 2.70 |
| Aperture | 1.0 |
| Thermal object distance | 0.6 m |
| Temperature measurement range | –20 °C to 150 °C or 0 °C to 550 °C (–4 °F to 302 °F or 32 °F to 1022 °F) |
| Temperature measurement accuracy | ± 2 °C (35.6 °F) or ± 2% of the readings |
| Max. temperature measurement distance | 5 m (@ target size 01 × 0.1 m2) |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 2.8 W @ 12 VDC |
| Installation method | Supports installation from 4 sides |
| Dimension | 48 mm × 48 mm × 117.9 mm (1.9" × 1.9" × 4.6") |
| Weight | Approx. 370 g (0.8 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 60 °C (–4 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux. |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.62 kg |
