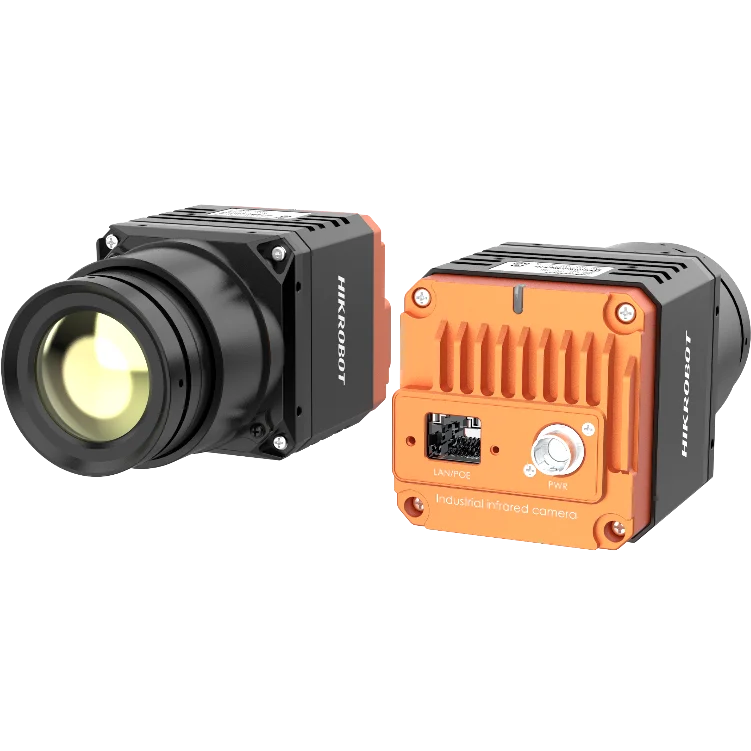

Hikrobot MV-CI003-GL-N6 0.3MP LWIR Camera, GigE, EFL 6.3mm
Model MV-CI003-GL-N6
Hikrobot MV-CI003-GL-N6 0.3MP LWIR Camera, GigE, EFL 6.3mm. Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP. Supports multiple palette modes, grayscale detection, image adjustment, etc.
Datasheet (PDF) - MV-CI003-GL-N6User manual (PDF) - MV-CI003-GL-N6CAD: 3D STEP + 2D DXF (ZIP) - MV-CI003-GL-N6
Features
- Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP.
- Supports multiple palette modes, grayscale detection, image adjustment, etc.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard.
Specifications
| Model | MV-CI003-GL-N6 |
|---|---|
| Brand | Hikrobot |
| Sensor type | Vanadium oxide uncooled detector |
| Pixel size | 17 μm |
| Resolution | 640 × 512 |
| Max. frame rate | 50 fps @ 640 × 512 |
| NETD | < 35 mk (F1.0, 25 °C) |
| Response time | < 10 ms |
| Pixel format | Mono 8/12/14, YUV422_YUYV_Packed |
| Color palettes | White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue |
| Image process | Supports brightness, contrast, image detail strength, digital noise reduction (spatial and temporal) |
| Focal length | 6.3 mm |
| Field of view | 88.5° × 73.2° |
| Min. operation distance | 0.1 m |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.5 W @ 12 VDC |
| Lens mount | M34*0.75 |
| Dimension | 58 mm × 58 mm × 115.5 mm (2.3" × 2.3" × 4.5") |
| Weight | Approx. 275 g (0.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux. |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.48 kg |
