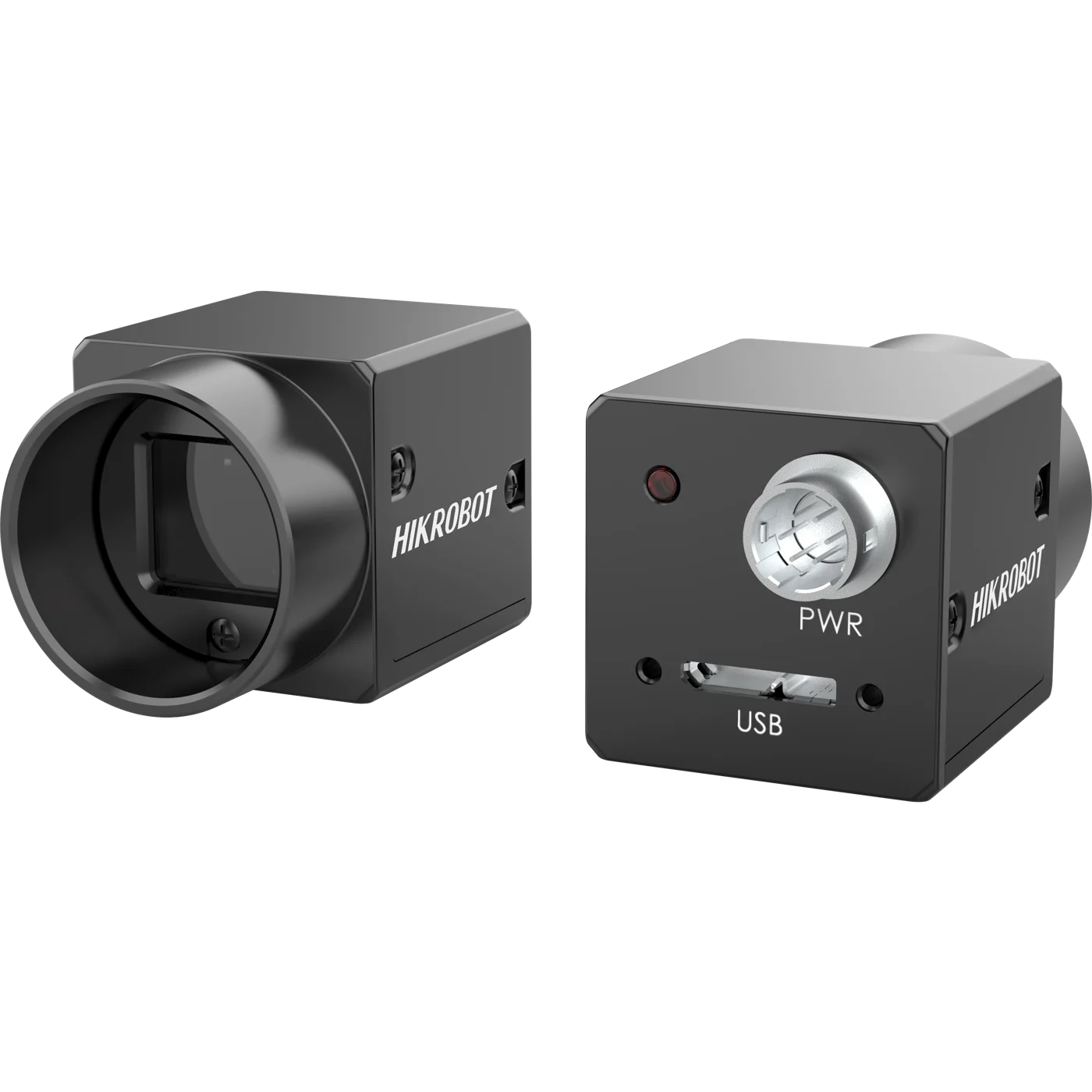

Hikrobot MV-CE050-30UC 5MP Area Scan Camera, USB3, AR0521, Color
Model MV-CE050-30UC
Hikrobot MV-CE050-30UC 5MP Area Scan Camera, USB3, AR0521, Color. Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode.
Datasheet (PDF) - MV-CE050-30UCUser manual (PDF) - MV-CE050-30UCCAD: 3D STEP + 2D DXF (ZIP) - MV-CE050-30UC
Features
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CE050-30UC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Aptina AR0521 |
| Pixel size | 2.2 μm × 2.2 μm |
| Sensor size | 1/2.5" |
| Resolution | 2592 × 1944 |
| Max. frame rate | 44.7 fps @ 2592 × 1944 |
| Dynamic range | 60 dB |
| SNR | 40 dB |
| Gain | 0 dB to 15 dB |
| Exposure time | 28 μs to 0.6 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Color |
| Pixel format | Mono 8/10/12, ; Bayer GR 8/10/10p/12/12p, ; YUV422_YUYV_Packed, YUV 422 Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Image buffer | 128 MB |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1; (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 12 VDC, ; supports USB3.0 power supply |
| Power consumption | Typ. 2.5 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 56 g (0.12 lb.) |
| Ingress protection | IP30 (under correct lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.18 kg |
