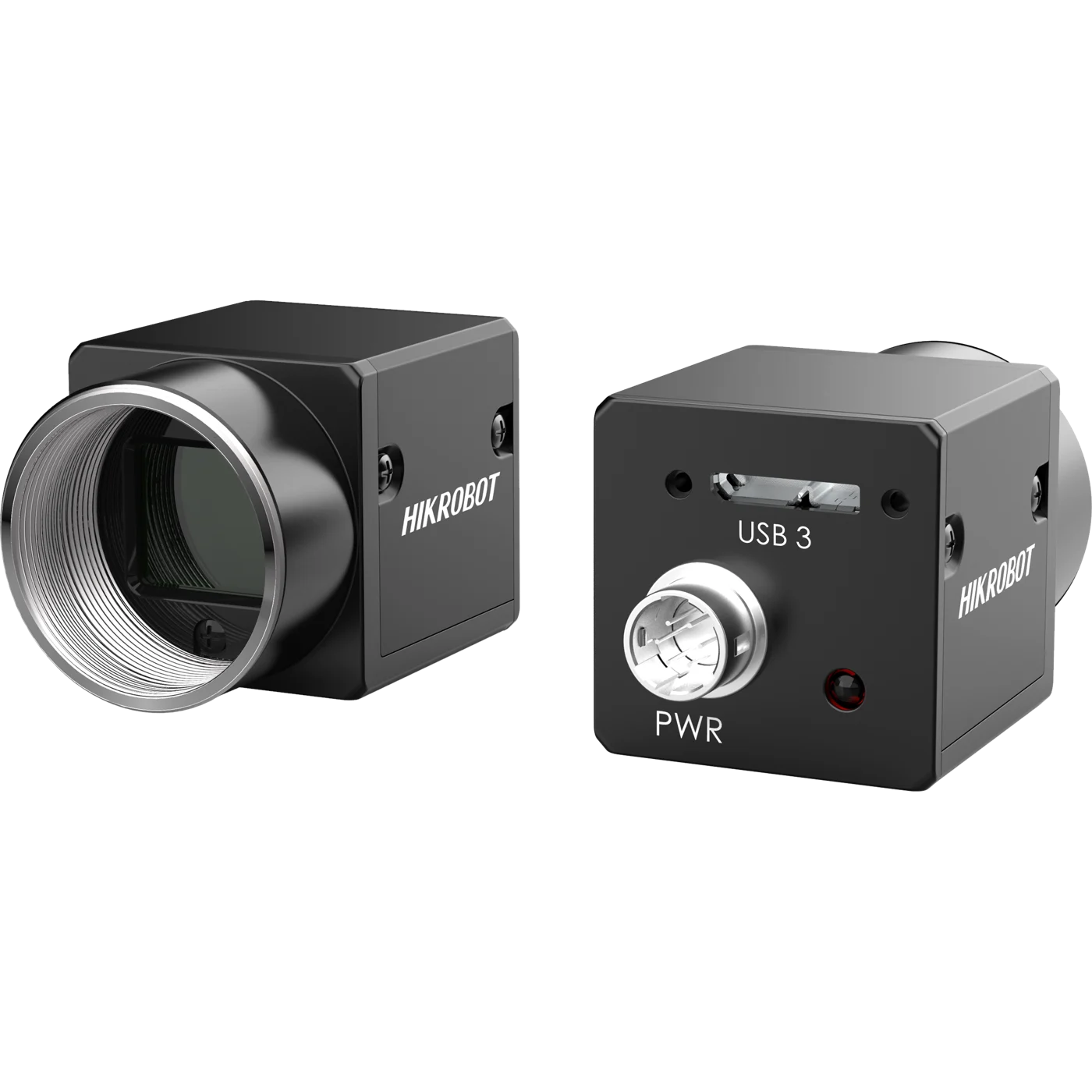

Hikrobot MV-CS060-RC 6 MP 1/1.8" CMOS USB3.0 Area Scan Camera
Model MV-CS060-RC
Hikrobot MV-CS060-RC 6 MP 1/1.8" CMOS USB3.0 Area Scan Camera. Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode.
Features
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CS060-RC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | IMX178 |
| Pixel size | 2.4 µm × 2.4 µm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 42.7 fps @3072 × 2048 |
| Dynamic range | 71.3 dB |
| SNR | 41.3 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 24 μs to 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset, Trigger Rolling, and Rolling |
| Mono/color | Color |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, <br/>YUV422_YUYV_Packed, YUV 422 Packed, RGB8, BGR8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Not support |
| Reverse image | Supports horizontal reverse image output |
| Image buffer | 128 MB |
| Data interface | USB3.0 |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1<br/>(Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 12 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 2.7 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 56 g (0.12 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F)<br/>Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, FCC, RoHS, KC |
| Shipping weight (estimated) | 0.18 kg |
