Telecentric lenses

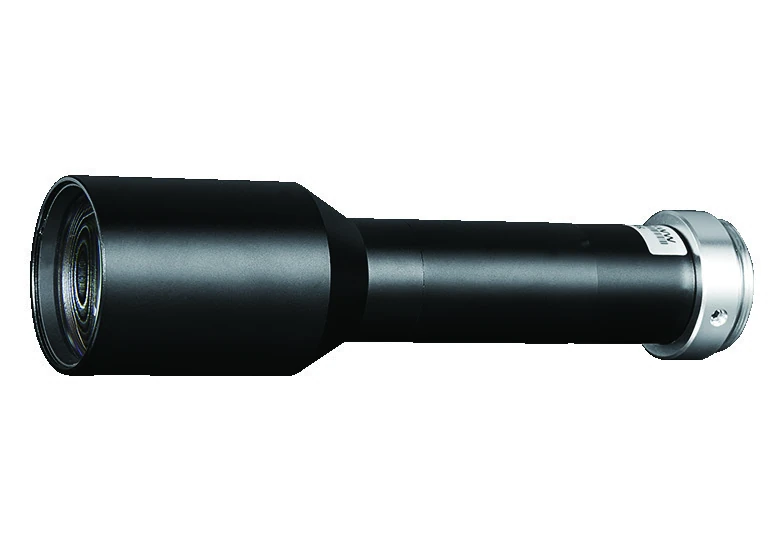

Megapixel telecentric lens (VWH), 2x, WD 110 mm, 2/3", C-Mount (LS-VWH20-110AT)
Model LS-VWH20-110AT
Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.
Features
- Compact design with coaxial illumination options
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Optional adjustable iris for resolution and DOF control
- Megapixel 'object side' telecentric lens with optional long working distance versions with over 500mm working distance
- Perfect image and supports all kinds of Mega camera
- Optional adjustable Iris for resolution and DOF control
Specifications
| Model | LS-VWH20-110AT |
|---|---|
| Mount | C |
| Magnification(x) | 2.0 |
| Working Distance (mm) | 110±2 |
| Max Sensor Size (dia. mm) | 11.0(2/3") |
| Aperture (F/#) | 18.2 |
| Distortion typical (max) (%) | 2.0 |
| MTF30 (lp/mm) | 45 |
| NA | 0.0536 |
| Resolution (um) | 6.3 |
| Depth of Field (mm) | 0.4 |
| FOV with 8.47x 7.10 with ICX625/655 (mm x mm) | 4.2x3.6 |
| Length (mm) | 147.4 |
| Coaxial Light | No |
| Iris | No |
| Mount (product parameters) | C-Mount |
| Detector | 2/3" |
| Magnification (product parameters) | 2.0x |
| WD (product parameters) | 110mm |
| Magnification (x) | 2.0 |
| Telecentricity typical (max) (deg) | <0.1 |
| MTF30(lp/mm) | 45 |
| Field of view with ICX625/655 (8.47x7.10 sensor) (mm x mm) | 4.2x3.6 |
| Sensor format | 2/3" |
| Shipping weight | 0.50 kg |
