Telecentric lenses

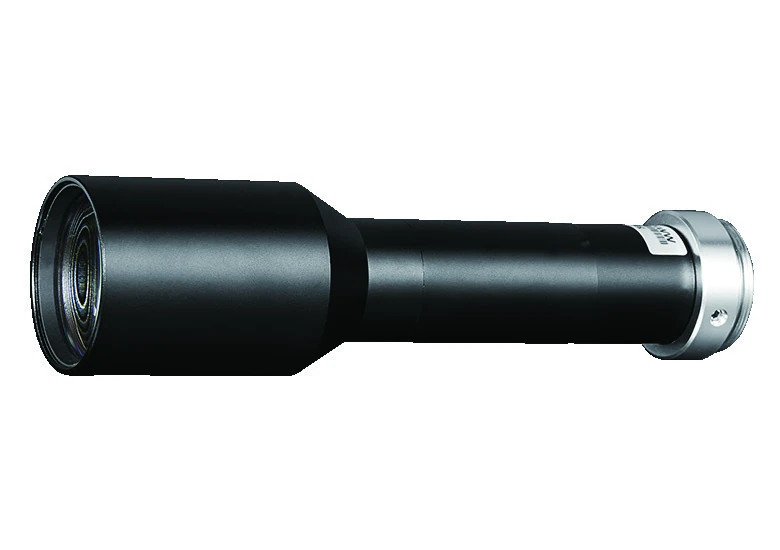

Megapixel telecentric lens (VWH), 1x, WD 410 mm, 1/2", C-Mount (LS-VWH10-410AT)
Model LS-VWH10-410AT
Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.
Features
- Compact design with coaxial illumination options
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Optional adjustable iris for resolution and DOF control
- Megapixel 'object side' telecentric lens with optional long working distance versions with over 500mm working distance
- Perfect image and supports all kinds of Mega camera
- Optional adjustable Iris for resolution and DOF control
Specifications
| Model | LS-VWH10-410AT |
|---|---|
| Mount | C |
| Magnification(x) | 1.0 |
| Working Distance (mm) | 410±3 |
| Max Sensor Size (dia. mm) | 8.0(1/2") |
| Aperture (F/#) | 17.9 |
| Distortion typical (max) (%) | 0.33 |
| MTF30 (lp/mm) | 37 |
| NA | 0.0273 |
| Resolution (um) | 12.3 |
| Depth of Field (mm) | 1.4 |
| FOV with 6.66x5.33 with 9M001 (mm x mm) | 6.7x5.3 |
| FOV with 6.47x 4.84 with ICX267/205 (mm x mm) | 6.5x4.8 |
| Length (mm) | 178.9 |
| Coaxial Light | No |
| Iris | No |
| Mount (product parameters) | C-Mount |
| Detector | 1/2" |
| Magnification (product parameters) | 1.0x |
| WD (product parameters) | 410mm |
| Magnification (x) | 1.0 |
| MTF30(lp/mm) | 37 |
| Field of view with 9M001 (6.66x5.33 sensor) (mm x mm) | 6.7x5.3 |
| Field of view with ICX267/205 (6.47x4.84 sensor) (mm x mm) | 6.5x4.8 |
| Sensor format | 1/2" |
| Shipping weight | 0.53 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Megapixel telecentric lens (VWH) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VWH20-110CT-G | 2x, WD 110 mm, 2/3", C-Mount | $629.00 | 5 in stock | View |
| LS-VWH20-65AT | 2x, WD 65 mm, 2/3", C-Mount | $629.00 | 4 in stock | View |
| LS-VWH20-65CT | 2x, WD 65 mm, 2/3", C-Mount | $629.00 | 4 in stock | View |
| LS-VWH15-110-230 | 1.5x, WD 110 mm, 2/3", C-Mount | $649.00 | 3 in stock | View |
| LS-VWH15-110C-230 | 1.5x, WD 110 mm, 2/3", C-Mount | $649.00 | 5 in stock | View |
| LS-VWH15-135-230 | 1.5x, WD 135 mm, 2/3", C-Mount | $649.00 | 3 in stock | View |
| LS-VWH15-135C-230 | 1.5x, WD 135 mm, 2/3", C-Mount | $649.00 | 2 in stock | View |
| LS-VWH15-65AT | 1.5x, WD 65 mm, 2/3", C-Mount | $649.00 | 3 in stock | View |
| LS-VWH15-65CT | 1.5x, WD 65 mm, 2/3", C-Mount | $649.00 | 2 in stock | View |
| LS-VWH10-180-120 | 1x, WD 180 mm, 1/2", C-Mount | $659.00 | 2 in stock | View |
| LS-VWH10-180C-120 | 1x, WD 180 mm, 1/2", C-Mount | $659.00 | 3 in stock | View |
| LS-VWH10-510AT | 1x, WD 510 mm, 2/3", C-Mount | $659.00 | 3 in stock | View |
| LS-VWH10-410CT | 1x, WD 410 mm, 1/2", C-Mount | $669.00 | 5 in stock | View |
| LS-VWH10-510CT | 1x, WD 510 mm, 1/2", C-Mount | $669.00 | 4 in stock | View |
| LS-VWH10-110AT | 1x, WD 110 mm, 2/3", C-Mount | $699.00 | 3 in stock | View |
| LS-VWH10-110AT-G | 1x, WD 110 mm, 2/3", C-Mount | $699.00 | 2 in stock | View |
| LS-VWH10-110CT | 1x, WD 110 mm, 2/3", C-Mount | $699.00 | 3 in stock | View |
| LS-VWH10-110CT-G | 1x, WD 110 mm, 2/3", C-Mount | $699.00 | 2 in stock | View |
| LS-VWH10-330AT | 1x, WD 330 mm, 2/3", C-Mount | $699.00 | 2 in stock | View |
| LS-VWH10-330CT | 1x, WD 330 mm, 2/3", C-Mount | $699.00 | 5 in stock | View |
| LS-VWH10-65CT | 1x, WD 65 mm, 2/3", C-Mount | $699.00 | 2 in stock | View |
| LS-VWH10-65AT | 1x, WD 65 mm, 2/3", C-mount | $709.00 | 5 in stock | View |
| LS-VWH08-130-230 | 0.8x, WD 130 mm, 2/3", C-Mount | $739.00 | 2 in stock | View |
| LS-VWH08-130C-230 | 0.8x, WD 130 mm, 2/3", C-Mount | $739.00 | 2 in stock | View |
See all 57 models in the Megapixel telecentric lens (VWH) series
