Telecentric lenses

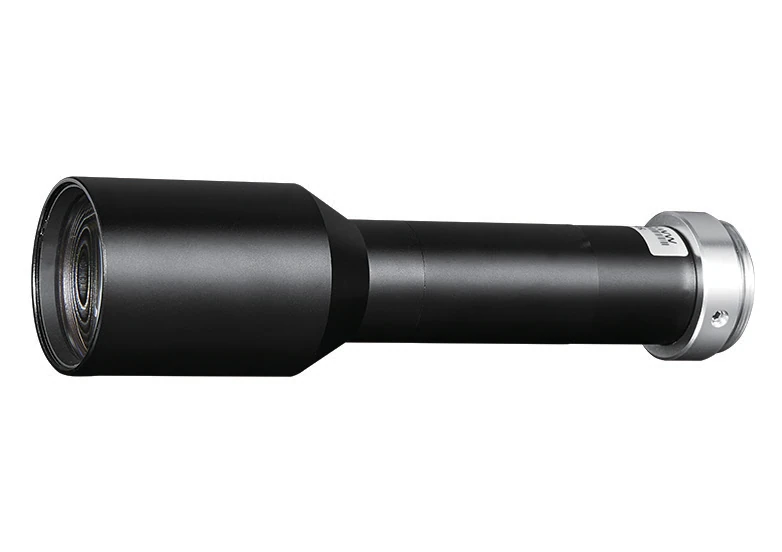

Megapixel telecentric lens (VWH), 1x, WD 65 mm, 2/3", C-mount (LS-VWH10-65AT)
Model LS-VWH10-65AT
Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.
Features
- Compact design with coaxial illumination options
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Optional adjustable iris for resolution and DOF control
- Megapixel 'object side' telecentric lens with optional long working distance versions with over 500mm working distance
Specifications
| Model | LS-VWH10-65AT |
|---|---|
| Mount | C |
| Magnification (x) | 1.0 |
| Working Distance (mm) | 65±1 |
| Max Sensor Size (dia. mm) | 11.0(2/3") |
| Aperture (F/#) | 11.1 |
| Telecentricity typical (max) (deg) | <0.1 |
| Distortion typical (max) (%) | <0.1 |
| MTF30 (lp/mm) | 70 |
| NA | 0.045 |
| Resolution (um) | 7.5 |
| Depth of Field (mm) | 0.9 |
| FOV 1/2" (6.4x4.8) (mm x mm) | 6.4 x 4.8 |
| FOV 1/1.8" (7.13x5.37) (mm x mm) | 7.13 x 5.37 |
| FOV 2/3" (8.8x6.6) (mm x mm) | 8.8 x 6.6 |
| Length (mm) | 79.9 |
| Coaxial Light | No |
| Iris | No |
| Front diameter (mm, drawing) | 26.0 |
| Max diameter (mm, drawing) | 28.0 |
| Sensor format | 2/3" |
| Field of view | 8.8 x 6.6 mm (2/3") |
| Shipping weight | 0.56 kg |
