Telecentric lenses

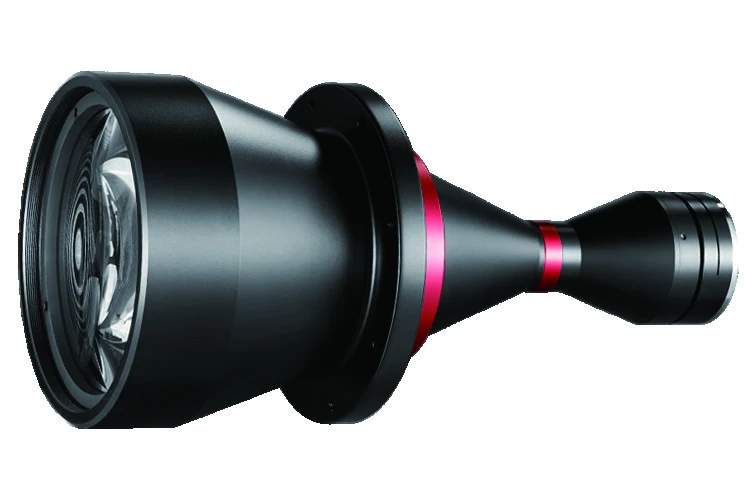

Bi-telecentric lens for 2" cameras (VCM210 series), 0.688x, WD 138 mm, 2", F or Other-mount (LS-VCM210-48S-AL)
Model LS-VCM210-48S-AL
Bi-telecentric lens series for sensors up to 2" (33 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
- Optimized for 4/3"~35mm F-Mount cameras
- Perfectly suitable for 4K and 8K line scan cameras
- FOV ranges from 26mm to 300mm
- Very high resolution, low distortion and homogeneous image quality
- Yield constant magnification over defined depth of field
- Customized mounts available.
Specifications
| Model | LS-VCM210-48S-AL |
|---|---|
| Max sensor size (dia. mm) | 33(2") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | F/M42 |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | F-Mount/Other |
| Detector | 2"(33MM) |
| Magnification (x) | 0.688 |
| Object Field of View (dia. mm) | 48 |
| Working Distance (mm) | 138±3 |
| Best Aperture (F/#) | 19.4 |
| Telecentricity typical (max) (deg) | <0.1 |
| Distortion typical (max) (%) | <0.1 |
| MTF30 (lp/mm) | >45 |
| Depth of Field (mm) | ±1.7@F20 |
| Length of I/O (mm) | 359±3 |
| Field of view with KAI-16050 (26.93x17.95 sensor) (mm x mm) | 39.1x26.1 |
| Field of view with PYTHON 25K (23.04x23.04 sensor) (mm x mm) | 33.5x33.5 |
| Length (mm) | 174.5 |
| Weight (kg) | 0.9 |
| Compatible telecentric led lighting | LS-VCL-48-XW-Y |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bi-telecentric lens for 2" cameras (VCM210 series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM210-26-AL | 1.269x, WD 72 mm, 2" | $999.00 | 8 in stock | View |
| LS-VCM210-42P-AL | 0.786x, WD 118 mm, 2", F-mount | $1,139.00 | 4 in stock | View |
| LS-VCM210-36-AL | 0.912x, WD 111 mm, 2" | $1,169.00 | 7 in stock | View |
| LS-VCM210-42-AL | 0.781x, WD 119 mm, 2" | $1,279.00 | 9 in stock | View |
| LS-VCM210-48-AL | 0.687x, WD 128 mm, 2" | $1,379.00 | 7 in stock | View |
| LS-VCM210-56-AL | 0.589x, WD 138 mm, 2" | $1,519.00 | 11 in stock | View |
| LS-VCM210-64-AL | 0.518x, WD 187 mm, 2" | $1,639.00 | 9 in stock | View |
| LS-VCM210-64P-AL | 0.514x, WD 159 mm, 2" | $1,649.00 | 13 in stock | View |
| LS-VCM210-80P-AL | 0.412x, WD 230 mm, 2", F/M58-mount | $1,679.00 | 2 in stock | View |
| LS-VCM210-72-AL | 0.458x, WD 178 mm, 2" | $1,789.00 | 9 in stock | View |
| LS-VCM210-90-AL | 0.367x, WD 208 mm, 2", F-mount | $1,809.00 | 2 in stock | View |
| LS-VCM210-80-AL | 0.412x, WD 229 mm, 2" | $1,929.00 | 11 in stock | View |
| LS-VCM210-100P-AL | 0.332x, WD 238 mm, 2", F-mount | $1,949.00 | 5 in stock | View |
| LS-VCM210-100-AL | 0.354x, WD 254 mm, 2" | $2,169.00 | 14 in stock | View |
| LS-VCM210-110-AL | 0.296x, WD 251 mm, 2" | $2,459.00 | 10 in stock | View |
| LS-VCM210-120-AL | 0.275x, WD 280 mm, 2", F or Other-mount | $2,609.00 | 5 in stock | View |
| LS-VCM210-136-AL | 0.242x, WD 288 mm, 2" | $2,889.00 | 10 in stock | View |
| LS-VCM210-150-AL | 0.22x, WD 301 mm, 2" | $3,129.00 | 13 in stock | View |
| LS-VCM210-170-AL | 0.194x, WD 318 mm, 2" | $3,439.00 | 10 in stock | View |
| LS-VCM210-190-AL | 0.174x, WD 330 mm, 2", F or Other-mount | $3,819.00 | 4 in stock | View |
| LS-VCM210-240-AL | 0.137x, WD 410 mm, 2" | $4,669.00 | 11 in stock | View |
| LS-VCM210-300-AL | 0.11x, WD 465 mm, 2", F or Other-mount | $5,699.00 | 2 in stock | View |
