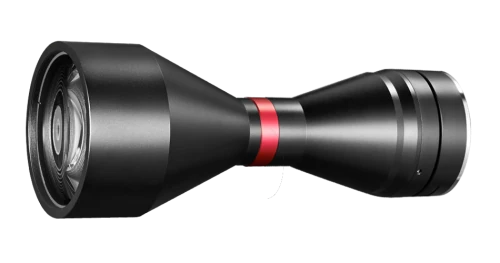

Bi-telecentric lens for 2" cameras (VCM210 series), 0.589x, WD 138 mm, 2" (LS-VCM210-56-AL)
Model LS-VCM210-56-AL
Bi-telecentric lens series for sensors up to 2" (33 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
Specifications
| Model | LS-VCM210-56-AL |
|---|---|
| Max sensor size (dia. mm) | 33(2") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | F/M42 |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | F-Mount/Other |
| Detector | 2"(33MM) |
| FOV (dia. mm) | 56 |
| Mag. (x) | 0.589 |
| WD (mm) | 138±2 |
| F/# | 9.6 |
| MTF30 (lp/mm) | >85 |
| DoF (mm) | ±2 |
| I/O (mm) | 396.5 |
| Length (mm) | 246.5 |
| Mount shown in drawing | M58 |
| Field of view on 2"KAI-16050(26.93x17.95) (mm) | 45.7 x 30.4 |
| Field of view on 2"PYTHON 25K(23.04x23.04) (mm) | 39.1 x 39.1 |
| Magnification (x) | 0.589 |
| Working distance (mm) | 138±2 |
| Depth of field (mm) | ±2 |
| Field of view on 2"KAI-16050(26.93x17.95) (mm x mm) | 45.7x30.4 |
| Field of view on 2"PYTHON 25K(23.04x23.04) (mm x mm) | 39.1x39.1 |
| Field of view (dia. mm) | 56 |
| Object-to-image distance I/O (mm) | 396.5 |
| Field of view with 2"KAI-16050(26.93x17.95) (mm) | 45.7x30.4 |
| Field of view with 2"PYTHON 25K(23.04x23.04) (mm) | 39.1x39.1 |
| Model (spec table) | 210-56-AL |
| Mag | 0.589x |
| FOV | 56mm |
| WD | 138mm |
| Sensor format | 2" |
| Aperture | F/9.6 |
| Shipping weight | 1.16 kg |
