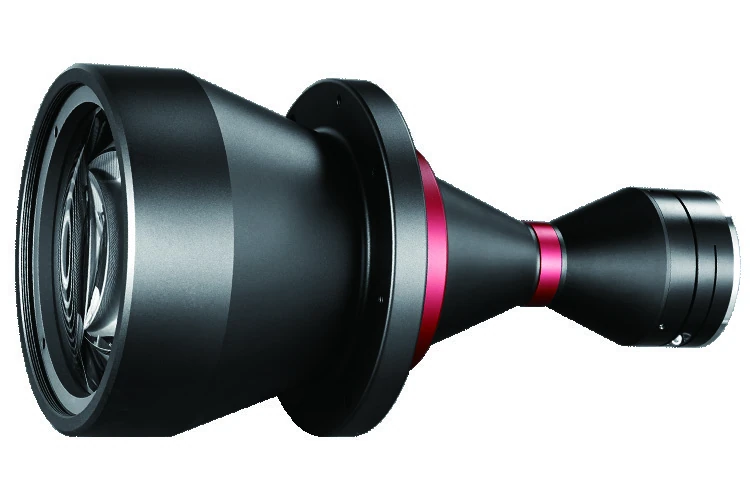

Bi-telecentric lens for 1.75" cameras (VCM175 series), 0.604x, WD 138 mm, 1.75", F or Other-mount (LS-VCM175-48S-AL)
Model LS-VCM175-48S-AL
Bi-telecentric lens series for sensors up to 1.75" (29 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
- Largest FOV from 26mm up to 300mm
- Low distortion, good telecentricity, big aperture
- and big depth of field for high end application.
Specifications
| Model | LS-VCM175-48S-AL |
|---|---|
| Max sensor size (dia. mm) | 29(1.75") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | F/M42 |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | F-Mount/Other |
| Detector | 1.75"(29mm) |
| Magnification (x) | 0.604 |
| Object Field of View (dia. mm) | 48 |
| Working Distance (mm) | 138±3 |
| Best Aperture (F/#) | 17.1 |
| Telecentricity typical (max) (deg) | <0.1 |
| Distortion typical (max) (%) | <0.1 |
| MTF30 (lp/mm) | >50 |
| Depth of Field (mm) | ±2.2@F20 |
| Length of I/O (mm) | 343±3 |
| Field of view with CMV12000 (22.53x16.90 sensor) (mm x mm) | 37.3x28.0 |
| Field of view with PYTHON16k (18.43x18.43 sensor) (mm x mm) | 30.5x30.5 |
| Field of view with LineScan-2k/4k/8k (28.8mm sensor) (mm x mm) | 47.7mm |
| Length(mm) | 158.8 |
| Weight(kg) | 0.9 |
| Compatible telecentric led lighting | LS-VCL-48-XW-Y |
