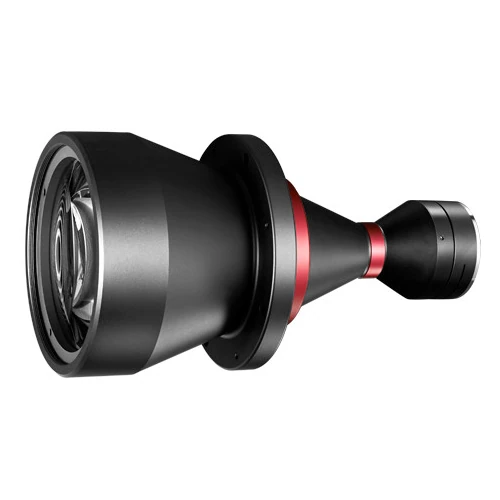

Bi-telecentric lens for 1.75" cameras (VCM175 series), 0.312x, WD 254 mm, 1.75" (LS-VCM175-100-AL)
Model LS-VCM175-100-AL
Bi-telecentric lens series for sensors up to 1.75" (29 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
Specifications
| Model | LS-VCM175-100-AL |
|---|---|
| Max sensor size (dia. mm) | 29(1.75") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | F/M42 |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | F-Mount/Other |
| Detector | 1.75"(29mm) |
| FOV (dia. mm) | 93 |
| Mag. (x) | 0.312 |
| WD (mm) | 254±3 |
| F/# | 12 |
| MTF30 (lp/mm) | >70 |
| DoF (mm) | ±5 |
| I/O (mm) | 536.5 |
| Length (mm) | 230 |
| Weight (kg) | 3.6 |
| Mount shown in drawing | F |
| Field of view on 1.75"CMV12000(22.53x16.90) (mm) | 72.2 x 54.1 |
| Magnification (x) | 0.312 |
| Working distance (mm) | 254±3 |
| Depth of field (mm) | ±5 |
| Field of view on 1.75"CMV12000(22.53x16.90) (mm x mm) | 72.2x54.1 |
| Field of view (dia. mm) | 93 |
| Object-to-image distance I/O (mm) | 536.5 |
| Field of view with 1.75"CMV12000(22.53x16.90) (mm) | 72.2x54.1 |
| Model (spec table) | 175-100-AL |
| Mag | 0.312x |
| FOV | 93mm |
| WD | 254mm |
| Sensor format | 1.75" |
| Aperture | F/12 |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Bi-telecentric lens for 1.75" cameras (VCM175 series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM175-26-AL | 1.115x, WD 72 mm, 1.75" | $369.00 | 10 in stock | View |
| LS-VCM175-36-AL | 0.798x, WD 111 mm, 1.75" | $419.00 | 11 in stock | View |
| LS-VCM175-42-AL | 0.686x, WD 119 mm, 1.75" | $449.00 | 10 in stock | View |
| LS-VCM175-48-AL | 0.603x, WD 128 mm, 1.75" | $479.00 | 10 in stock | View |
| LS-VCM175-56-AL | 0.517x, WD 138 mm, 1.75" | $549.00 | 10 in stock | View |
| LS-VCM175-64-AL | 0.456x, WD 187 mm, 1.75" | $609.00 | 10 in stock | View |
| LS-VCM175-64P-AL | 0.452x, WD 159 mm, 1.75" | $609.00 | 12 in stock | View |
| LS-VCM175-72-AL | 0.401x, WD 178 mm, 1.75" | $719.00 | 13 in stock | View |
| LS-VCM175-80-AL | 0.36x, WD 229 mm, 1.75" | $819.00 | 12 in stock | View |
| LS-VCM175-110-AL | 0.261x, WD 251 mm, 1.75" | $1,259.00 | 11 in stock | View |
| LS-VCM175-136-AL | 0.214x, WD 288 mm, 1.75" | $1,469.00 | 13 in stock | View |
| LS-VCM175-150-AL | 0.193x, WD 301 mm, 1.75" | $1,679.00 | 15 in stock | View |
| LS-VCM175-170-AL | 0.171x, WD 318 mm, 1.75" | $2,559.00 | 10 in stock | View |
| LS-VCM175-240-AL | 0.12x, WD 410 mm, 1.75" | $3,749.00 | 12 in stock | View |
