Telecentric lenses

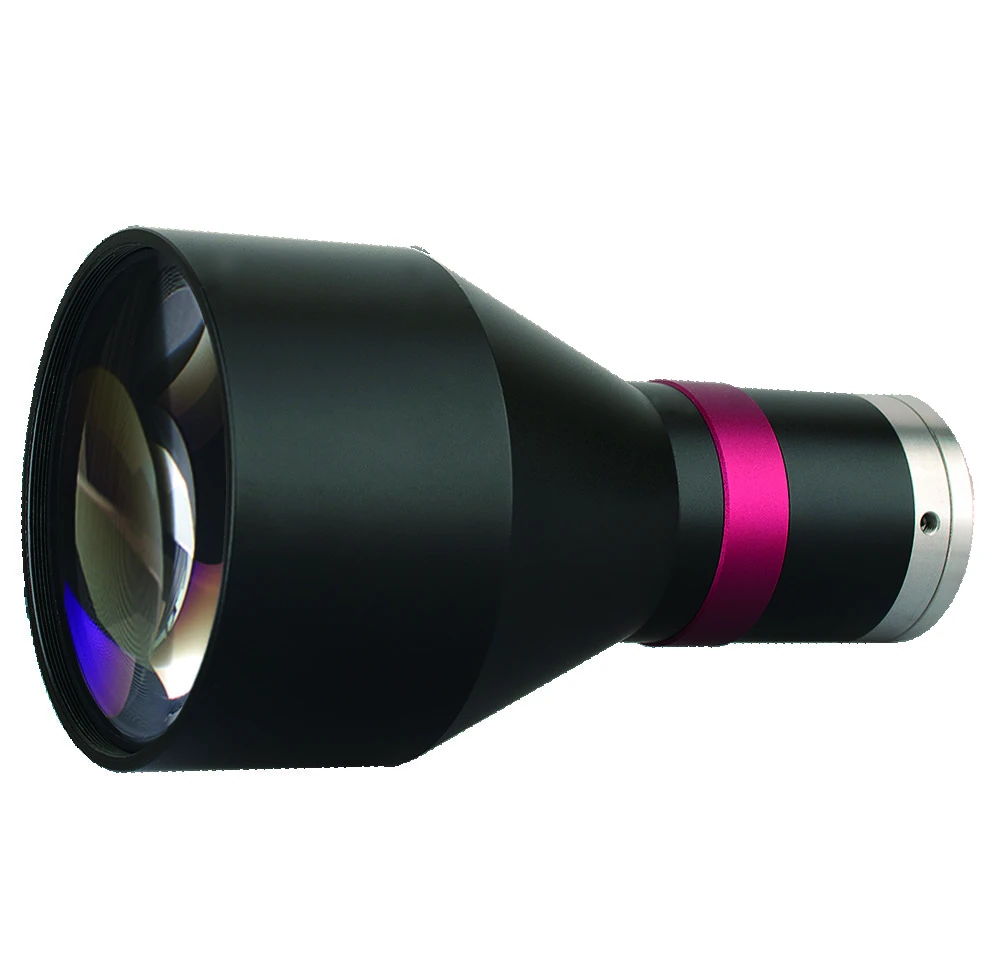

Bi-telecentric lens for 1/1.8" cameras (VCM118 series), 0.25x, WD 110 mm, 1/1.8", C-mount (LS-VCM118-36)
Model LS-VCM118-36
VCM118 series bi-telecentric lenses for 1/1.8" cameras. Matrix-design with extremely high imaging quality, standard FOV from 26 to 240 mm; each VCM series lens comes with an imaging quality test report.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
Specifications
| Model | LS-VCM118-36 |
|---|---|
| Max sensor size (dia. mm) | 9(1/1.8") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | C |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | C-Mount |
| Magnification (x) | 0.250 |
| Object Field of View (dia. mm) | 36 |
| Working Distance (mm) | 110±2 |
| Best Aperture (F/#) | 4.6 |
| Telecentricity typical (max) (deg) | <0.1 |
| Distortion typical (max) (%) | <0.1 |
| MTF30 (lp/mm) | >180 |
| Depth of Field (mm) | ±7.0@F11 |
| Length of I/O (mm) | 256±2 |
| Field of view with ICX274/687 (7.16x5.44 sensor) (mm x mm) | 28.6x21.8 |
| Field of view with EV76C570 (7.2x5.4 sensor) (mm x mm) | 28.8x21.6 |
| Length (mm) | 128.3 |
| Weight (kg) | 0.4 |
| Compatible telecentric led lighting | LS-VCL-36-XW-Y |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bi-telecentric lens for 1/1.8" cameras (VCM118 series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM118-26-AL | 0.348x, WD 72 mm, 1/1.8", C-Mount | $999.00 | 5 in stock | View |
| LS-VCM118-26 | 0.346x, WD 73 mm, 1/1.8", C-mount | Price on request | 2 in stock | View |
| LS-VCM118-36-AL | 0.25x, WD 111 mm, 1/1.8", C-Mount | $1,169.00 | 5 in stock | View |
| LS-VCM118-42-AL | 0.217x, WD 119 mm, 1/1.8", C-Mount | $1,259.00 | 4 in stock | View |
| LS-VCM118-42 | 0.214x, WD 118 mm, 1/1.8", C-mount | Price on request | 4 in stock | View |
| LS-VCM118-48-AL | 0.188x, WD 128 mm, 1/1.8", C-Mount | $1,379.00 | 5 in stock | View |
| LS-VCM118-48S-AL | 0.188x, WD 138 mm, 1/1.8", C-mount | Price on request | 3 in stock | View |
| LS-VCM118-48 | 0.188x, WD 128 mm, 1/1.8", C-mount | Price on request | 5 in stock | View |
| LS-VCM118-56-AL | 0.162x, WD 138 mm, 1/1.8", C-Mount | $1,519.00 | 5 in stock | View |
| LS-VCM118-64-AL | 0.142x, WD 187 mm, 1/1.8", C-Mount | $1,639.00 | 2 in stock | View |
| LS-VCM118-64P-AL | 0.141x, WD 159 mm, 1/1.8", C-Mount | $1,639.00 | 3 in stock | View |
| LS-VCM118-72-AL | 0.126x, WD 178 mm, 1/1.8", C-Mount | $1,789.00 | 4 in stock | View |
| LS-VCM118-80-AL | 0.113x, WD 229 mm, 1/1.8", C-Mount | $1,929.00 | 5 in stock | View |
| LS-VCM118-90-AL | 0.1x, WD 208 mm, 1/1.8", C-mount | Price on request | 3 in stock | View |
| LS-VCM118-100-AL | 0.097x, WD 254 mm, 1/1.8", C-Mount | $2,149.00 | 2 in stock | View |
| LS-VCM118-110-AL | 0.082x, WD 251 mm, 1/1.8", C-Mount | $2,439.00 | 2 in stock | View |
| LS-VCM118-120-AL | 0.075x, WD 280 mm, 1/1.8", C-mount | $2,609.00 | 2 in stock | View |
| LS-VCM118-136-AL | 0.066x, WD 288 mm, 1/1.8", C-Mount | $2,889.00 | 3 in stock | View |
| LS-VCM118-150-AL | 0.061x, WD 301 mm, 1/1.8", C-Mount | $3,089.00 | 3 in stock | View |
| LS-VCM118-170-AL | 0.053x, WD 318 mm, 1/1.8", C-Mount | $3,469.00 | 3 in stock | View |
| LS-VCM118-190-AL | 0.047x, WD 330 mm, 1/1.8", C-mount | Price on request | 2 in stock | View |
| LS-VCM118-240-AL | 0.038x, WD 410 mm, 1/1.8", C-Mount | $4,619.00 | 4 in stock | View |
| LS-VCM118-300-AL | C-mount | Price on request | 4 in stock | View |
