Telecentric lenses

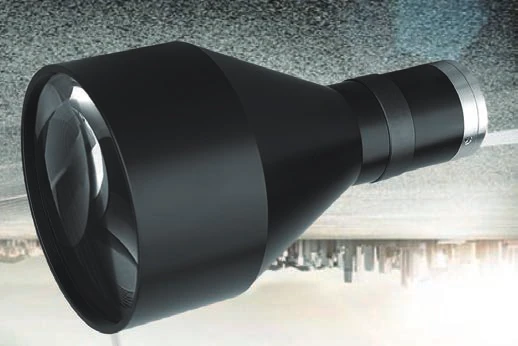

Bi-telecentric lens for 1/1.8" cameras (VCM118 series), 0.141x, WD 159 mm, 1/1.8", C-Mount (LS-VCM118-64P-AL)
Model LS-VCM118-64P-AL
VCM118 series bi-telecentric lenses for 1/1.8" cameras. Matrix-design with extremely high imaging quality, standard FOV from 26 to 240 mm; each VCM series lens comes with an imaging quality test report.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
Specifications
| Model | LS-VCM118-64P-AL |
|---|---|
| Max sensor size (dia. mm) | 9(1/1.8") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | C |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | C-Mount |
| FOV (dia. mm) | 63 |
| Mag. (x) | 0.141 |
| WD (mm) | 159±2 |
| F/# | 4.6 |
| MTF30 (lp/mm) | >175 |
| DoF (mm) | ±8 |
| I/O (mm) | 331.9 |
| Length (mm) | 155.5 |
| Weight (kg) | 1.1 |
| Mount shown in drawing | C |
| Field of view on 1/1.8" ICX274/687(7.16x5.44) (mm) | 50.7 x 38.5 |
| Field of view on 1/1.8" EV76C570(7.2x5.4) (mm) | 51.0 x 38.2 |
| Magnification (x) | 0.141 |
| Working distance (mm) | 159±2 |
| Depth of field (mm) | ±8 |
| Field of view on 1/1.8" ICX274/687(7.16x5.44) (mm x mm) | 50.7x38.5 |
| Field of view on 1/1.8" EV76C570(7.2x5.4) (mm x mm) | 51.0x38.2 |
| Model (spec table) | 118-64P-AL |
| Detector | 1/1.8" |
| Mag | 0.141x |
| FOV | 63mm |
| WD | 159mm |
| Sensor format | 1/1.8" |
| Aperture | F/4.6 |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Bi-telecentric lens for 1/1.8" cameras (VCM118 series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM118-26-AL | 0.348x, WD 72 mm, 1/1.8", C-Mount | $329.00 | 5 in stock | View |
| LS-VCM118-36-AL | 0.25x, WD 111 mm, 1/1.8", C-Mount | $369.00 | 5 in stock | View |
| LS-VCM118-42-AL | 0.217x, WD 119 mm, 1/1.8", C-Mount | $399.00 | 4 in stock | View |
| LS-VCM118-48-AL | 0.188x, WD 128 mm, 1/1.8", C-Mount | $429.00 | 5 in stock | View |
| LS-VCM118-56-AL | 0.162x, WD 138 mm, 1/1.8", C-Mount | $499.00 | 5 in stock | View |
| LS-VCM118-64-AL | 0.142x, WD 187 mm, 1/1.8", C-Mount | $549.00 | 2 in stock | View |
| LS-VCM118-72-AL | 0.126x, WD 178 mm, 1/1.8", C-Mount | $639.00 | 4 in stock | View |
| LS-VCM118-80-AL | 0.113x, WD 229 mm, 1/1.8", C-Mount | $739.00 | 5 in stock | View |
| LS-VCM118-110-AL | 0.082x, WD 251 mm, 1/1.8", C-Mount | $809.00 | 2 in stock | View |
| LS-VCM118-100-AL | 0.097x, WD 254 mm, 1/1.8", C-Mount | $949.00 | 2 in stock | View |
| LS-VCM118-136-AL | 0.066x, WD 288 mm, 1/1.8", C-Mount | $1,319.00 | 3 in stock | View |
| LS-VCM118-150-AL | 0.061x, WD 301 mm, 1/1.8", C-Mount | $1,509.00 | 3 in stock | View |
| LS-VCM118-170-AL | 0.053x, WD 318 mm, 1/1.8", C-Mount | $2,299.00 | 3 in stock | View |
| LS-VCM118-240-AL | 0.038x, WD 410 mm, 1/1.8", C-Mount | $3,359.00 | 4 in stock | View |
