360° inspection lenses
1", C-mount 360° Inspection Lens (LS-SRV85190)
Model LS-SRV85190
1", C-mount 360° Inspection Lens. 360-degree inner-wall view lens for sensors up to 1", for bores 8.5-120 mm in diameter and 10-190 mm deep. At a glance: format 1"; resolution Megapixel; mount C; distortion < -17%; size dia. 54 x 127.2 mm.
Features
- 360° inner-wall inspection
- High resolution & compact size
Specifications
| Model | LS-SRV85190 |
|---|---|
| Format | 1" |
| Resolution | Megapixel |
| Image circle | dia. 9.6 |
| Wavelength | 450~700 |
| Size | dia. 54 x 127.2 mm |
| Mount | C |
| Operating temperature | 20℃ ~ +65℃ |
| Relative illumination | 30% |
| Distortion | < -17% |
| CRA | 9.2° |
| Inspection range (diameter / height / sensor: working distance) | 8.5~120 mm / 10~190 mm / 1/2": 9-62 mm; 11~120 mm / 10~190 mm / 2/3": 9-62 mm; 15~120 mm / 10~190 mm / 1": 8-35 mm |
| Shipping weight (estimated) | 0.94 kg |

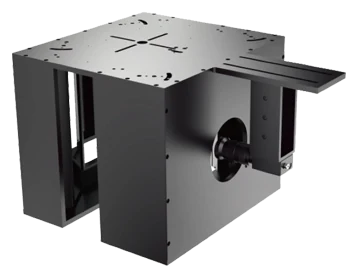

Photo shows a representative model of this series; see the specifications for this model.
Applications
- Tube, automotive engine and container inside inspection
