M58-mount 360° Inspection Lens (LS-SRO27021)

360° inspection lenses

M58-mount 360° Inspection Lens (LS-SRO27021)

Model LS-SRO27021

M58-mount 360° Inspection Lens. A catadioptric poly-view lens with built-in lighting that images the inner or outer wall of cylindrical objects from multiple angles in one shot (outer view object height 10-33 mm, inner view 5-21 mm), for bottles, caps, tubes and fasteners. At a glance: magnification 0.2x; resolution 25 um; aperture F6.8; mount M58 x P0.75; tv distortion <0.05%.

$619.00 USDIn stock · 3 available

Inventory updated Oct 14, 2026

0.94 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • Outer and inner view multi-angle 360 degree imaging
  • High-resolution megapixel
  • Object height 10-33 mm outer view, 5-21 mm inner view
  • Built-in lighting

Specifications

ModelLS-SRO27021
Magnification0.2x
ApertureF6.8
N.A.0.014
Image sizedia. 17.6 mm
T.T.L.398.13 mm
TV distortion<0.05%
Resolution25 um
Outer wall objects (H x D: WD)33 x dia.12: 45; 33 x dia.20: 42; 33 x dia.30: 32; 33 x dia.45: 27; 23 x dia.60: 20; 10 x dia.70: 10 (mm)
Inner wall objects (H x D: WD)5 x dia.8: 12-40; 13 x dia.16: 34-54; 20 x dia.25: 45-54; 31 x dia.40: 63; 27 x dia.55: 72; 21 x dia.65: 78 (mm)
Sizedia. 177 x 425.12 ±3 mm (drawing)
MountM58 x P0.75
Shipping weight (estimated)0.94 kg

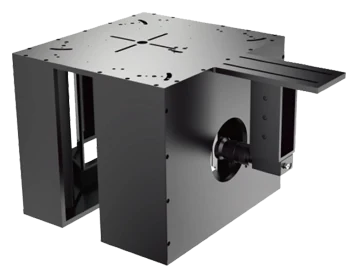

Photo shows a representative model of this series; see the specifications for this model.

Applications

  • Pharmaceutical
  • Bottles
  • Tubes
  • Cylinders
  • Bottle caps
  • Fasteners
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide
