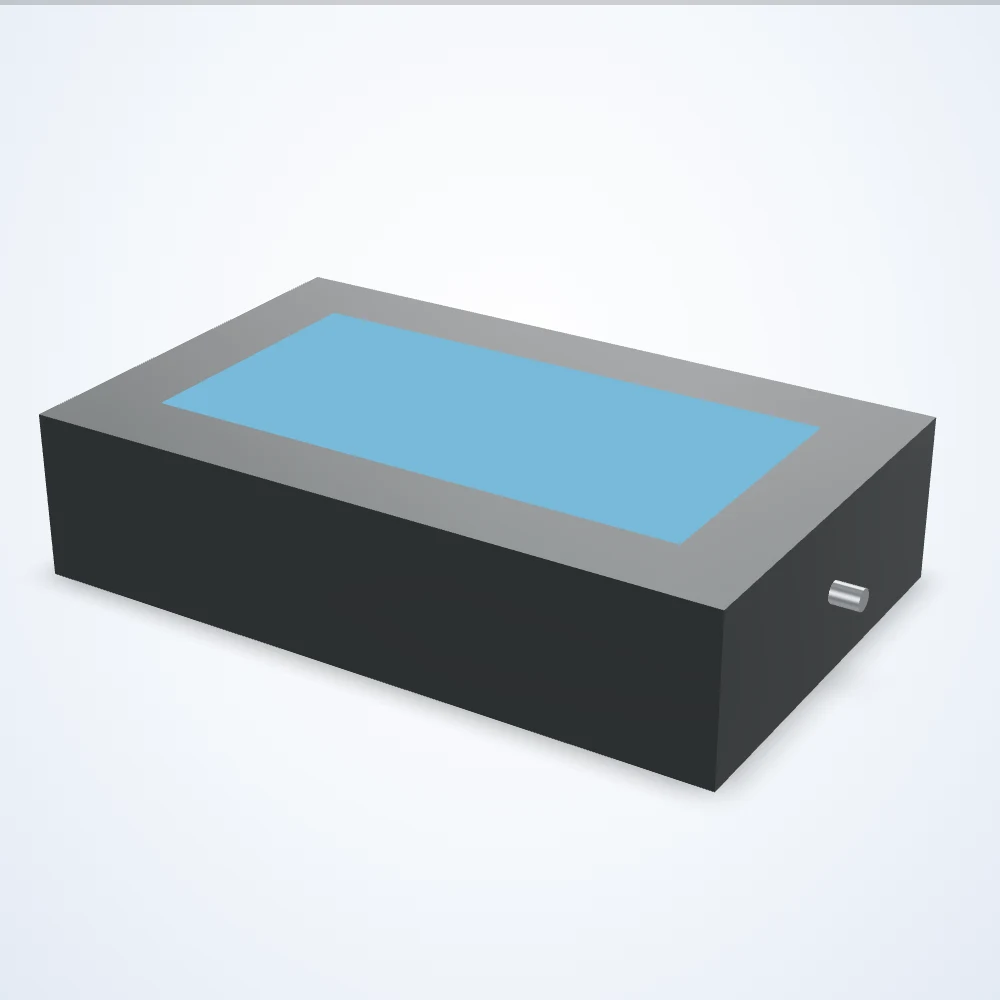

Rendered illustration: the actual product may differ in appearance.
Spot lights
Spot light, 306 x 153 mm lit area, storage temperature 20 to 50 °C (LS-SPT-0105)
Model LS-SPT-0105
Compact spot light for small fields of view and high intensity at a distance. Lit area 306 x 153 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (7 configurations) and request a quote.
Specifications
| Model | LS-SPT-0105 |
|---|---|
| Lens / beam angle | Diffused |
| Lit length (mm) | 306 |
| Lit width (mm) | 153 |
| Length (mm) | 396 |
| Width (mm) | 243 |
| Height (mm) | 93.5 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable |
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Operating temperature | 20 to 50 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Diffused |
| Direct connect | No |
| Maximum constant on current (ma) | 1620 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 38.9 |
| NPN trigger current (ma) | 22 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 30.4 |
| PNP trigger voltage (v) | 3.3-24 VDC |
| Polarized | Not Polarized |
| Storage temperature | 20 to 50 °C |
| Compliance | CE, IEC 62471, RoHS |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Spot light series, 93.5 mm high, 5 Pin M12 Male A-Coded (S15) series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPT-0104 | 153 x 153 mm | Price on request | 28 in stock | View |
| LS-SPT-0106 | 306 x 306 mm | Price on request | 23 in stock | View |
