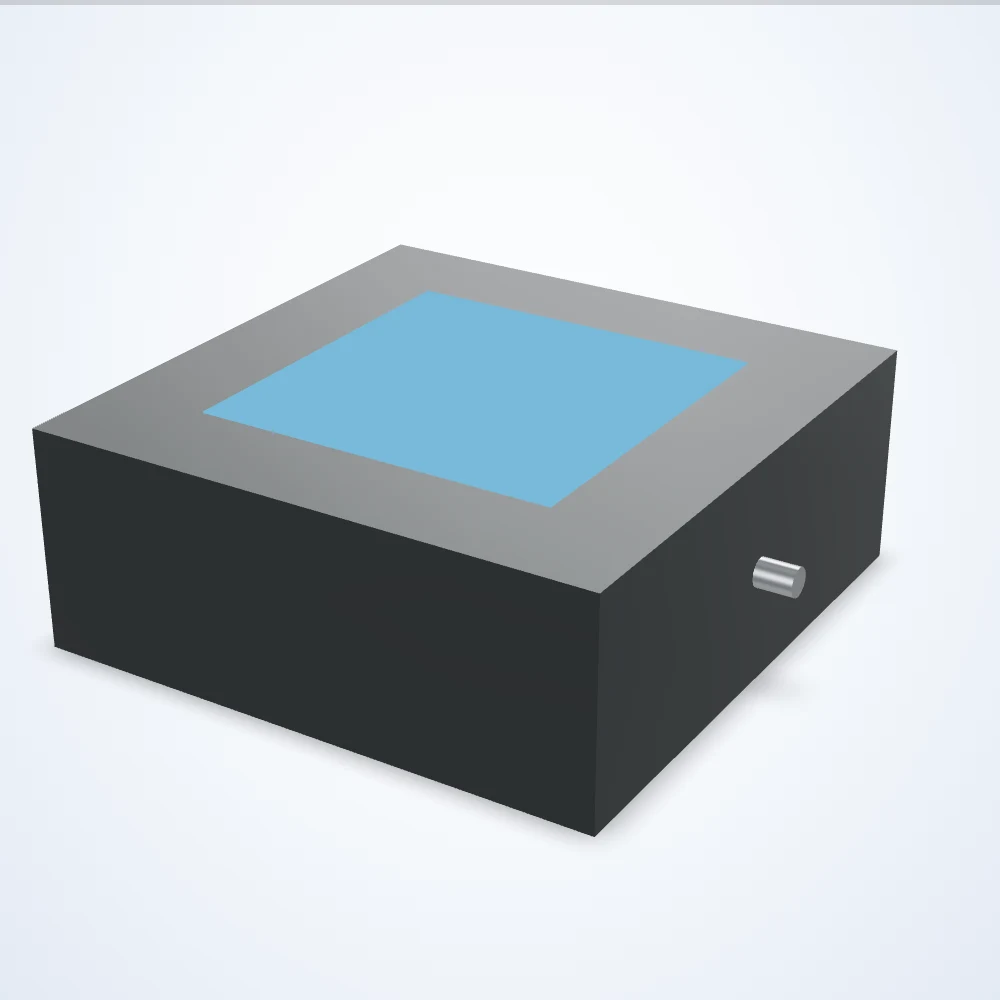

Rendered illustration: the actual product may differ in appearance.
Spot lights
243 x 243 mm spot light (LS-SPT-0104)
Model LS-SPT-0104
243 x 243 mm spot light. Lit area 153 x 153 mm. Connection: 5 Pin M12 Male A-Coded. Available in 7 configurations (color); choose one below and request a quote.
Specifications
| Model | LS-SPT-0104 |
|---|---|
| Active Length (mm) | 153 |
| Active Width (mm) | 153 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | Internal |
| Driver Nomenclature | SVL Smart Driver |
| Height (mm) | 93.5 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 243 |
| Lens Angle | Diffused |
| Maximum Constant On Current (mA) | 820 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 19.7 |
| Maximum Operating Temperature (C) | 50 |
| Maximum Operating Temperature (F) | 122 |
| Maximum Storage Temperature (C) | 50 |
| Maximum Storage Temperature (F) | 122 |
| Minimum Operating Temperature (C) | -20 |
| Minimum Operating Temperature (F) | -4 |
| Minimum Storage Temperature (C) | -20 |
| Minimum Storage Temperature (F) | -4 |
| Mounting Method | T-Slot Channels |
| NPN Trigger Current (mA) | 22 |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On, Constant On – Dimmable |
| PNP Trigger Current (mA) | 30.4 |
| PNP Trigger Voltage (V) | 3.3-24 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 2.22 |
| Product Weight (Lbs) | 4.9 |
| Strobe Trigger Input | NPN Trigger, PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 243 |
